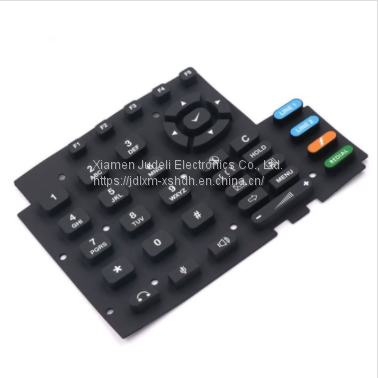

Silicone Rubber Buttons

Product Details

Product Description

Product Description
1. Customization: various silicone rubber keys and keyboards.
2. OEM/ODM: acceptable
3. Various surface treatments: backlight design, laser engraving, silk screen printing, embossing, epoxy resin coating, spraying, key cap.
4. Provide 2D/3D drawings or samples for quick quotation.
5. Delivery time: usually 7~15 working days.
Silicone rubber keypad is a elastomer key, also called silicone keyboard, the silicone key pad or rubber pad, is a kind of widely used elastomer switching element, it is made of silicone rubber materials after compression mold forming or LSR injection molding, in electronic communication, POS terminals, remote control, medical equipment, machinery and equipment, auto aviation and other fields have a wide range of applications.The silicone button is an approved, reliable switching element.We are a professional silicone button manufacturer, you can customize all kinds of silicone buttons.
Application Scope:
1. Indoor and outdoor machinery
2. Electrical appliances
3. Electronic equipment
4. Computer equipment
5. POS handheld terminal
6. Business machines
7. Toys and Games Consoles
8. Medical instruments
Silicone Rubber Buttons without conductive pills, which also called button cover or button cap, as a switches keyboard cover, also have dust proof and decorative effects.
Silicone Buttons with conductive pills and buttons webbing, which also called silicone buttons pads & silicone keypads, not only as button cover, but also as a switch & on-off.
The conductive modes of silicone rubber keys are mainly as follows:
1. Black carbon pill
2. Conductive ink
3. Metal dome
4. Conductive gold pellets
5. Conductive nickel sheet

Life Time	Resistance	Diameter	Thickness	Advantage	Disavantage
Carbon Pills	Above 10 Millions	10-100 Ohms	1.5-8 mm	0.2-0.6 mm	Lower Resistance Stable Life Time	Shape Limited
Conductive Ink Printing	Above 10 Millions	50-350 Ohms	Available	10-20 Microns	Any Shape is Available	Resistance Limited
Metal Domes	Above 10 Millions	0-10 Ohms	Available	0.05-0.1mm	Lower Resistance	Bad Tactile Feel Without Dust Free Functions
Metal Pills	Above 10 Millions	0-10 Ohms	Available	0.05-2mm	Lower Resistance	Low Production Efficiency High Unit Price

Silicone rubber key surface character and pattern processing
Screen printing and laser engraving are usually used to process the text and patterns on the key surface, but also embossed patterns or plastic key caps are used.
Silicone rubber key surface protection
Sometimes we buttons in order to more beautiful and durable, by screen printing or laser cutting process after processing the character and pattern, also will increase the protective coating for it, such as using a glue craft, drops of glue in the surface of the keyboard, keyboard that makes it glittering and translucent get rid of is appeared, more beautiful, also can according to customer needs, directly to the key buckle on plastic and metal cap, in order to increase the visual sense.

---
