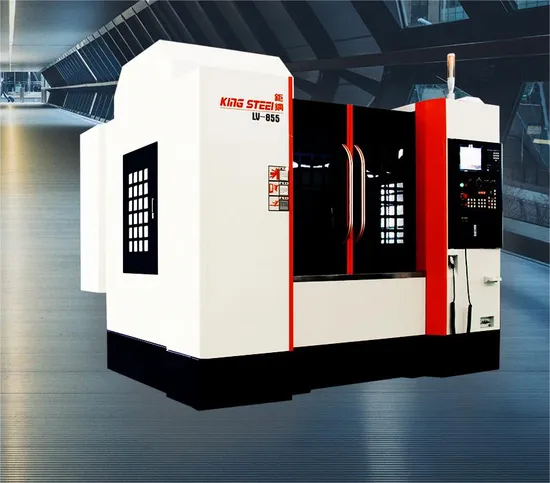

Chinese Taiwan 3 4 5 Axis CNC Vertical Milling Machine Siemens Fanuc Mitsubishi Controller LV855 High Speed High Precision CNC Machining Center

Product Description

Product Description
1.The processes of artificial annealing-vibration-artificial aging-nature aging processes(6 months) can keep the casting iron parts long time precision without deformation.
2.High rigid structure can bear the inertia produced by high G movement.
3.High speed mute screw and mute linear rail reduce thermal displacement and improve precision.
4.Great performance of spindle makes the high speed cutting efficiently.
5.X/Y/Z 48m/min rapid feeding movement can save 40% non-processing time.

Detailed Photos
Control system Fanuc/Mitsubishi/Siemens
Workbench High-frequency quenching for better rigidity
3-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.
Heat dissipation device Standard configuration: Electrical cabinet heat exchanger Optional configuration: Electrical cabinet air conditioner
Automatic tool changer Standard configuration: 24-tool arm-type tool magazine Optional configuration: 32-tool arm-type tool magazine

Product Parameters

Model	LV-855 CNC machining center	Fanuc/Mitsubishi/Siemens/Fagor/Syntec
Worktable	Table Size	1000*550mm
	T-slot (Width x No. x Distance)	18mmx5pcsx90mm
	Max. loading weight	800kg
Travel	X axis travel	850mm
	Y axis travel	580mm
	Z axis travel	580mm
	Spindle nose to worktable	130-710mm
Spindle	Belt Type spindle speed	10000/12000
	Spindle motor power	7.5/ 11KW
	Spindle taper	BT40
Feed	X/Y/Z feed speeds	48/48/48m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.006mm Acc. VDI 3441 Std.
	Repeatability	0.003mm Acc. VDI 3441 Std.
Tool magazine	Tool quantity	24T
Dimension& Weight	Approx. outer dimensions	2650x2600x2650mm
	Approx. weight	5800kg

Certifications

Packaging & Shipping

Company Profile
Company profile:
Zhangzhou Jugang Precision Machinery Co.,Ltd is a national high-tech enterprise, who mainly engaged in research, development, production and sales of high speed and high precision CNC machines. Our main products are vertical CNC engraving and milling machine, CNC drilling and tapping machine, high speed and high precision CNC machining center with gantry, linear rail type CNC machining center, roller guideway CNC machining center, horizontal machining center, column and gantry machining center etc. Our machines are extensively used in various industries, such as aerospace parts, hardware and soft metal machining, mold making, auto parts, 3C products, medical machinery, energy industry, armaments processing and so on.
Jugang established a subsidiary (Taiwan Jugang Precision Machinery Co.,Ltd) in Taichung City, Taiwan, who mainly responsible for researching and developing new products, integrating and creating experience and advantage of Taiwan CNC industry. Taiwan Giant Steel provides more extensive industrial resources for the whole Jugang company. There are marketing and after-sales service branch in each city of China.

Our Advantages

I. Jugang has a Complete Industrial Chain production structure from machine tool castings, light machines to sheet metal, and complete machines to ensure delivery and quality.
II. Since its establishment, the company has gathered a group of professionals to make more in-depth development with comprehensive thinking. Researchers keep abreast of the latest development trends of products and respond quickly according to customer needs so that the company has strong technical support and a competitive advantage in research and development. Innovate products with the goal of "Your satisfaction is the eternal pursuit of Jugang".
III. Staff Stability:The machine tool industry is a technology-intensive industry and requires the accumulation of technology. Employees with more than ten years of experience in the company account for 45%.
IV. Applied Talents: With a 5-10 year training cycle, the company's senior skilled workers with a working experience of 5-10 years account for 30%, and the turnover rate of first-line skilled workers is low.
V.The company introduces standardized operating procedures, uses world-class testing equipment, is equipped with a high-quality workforce, strict quality standards, and the quality can be traced throughout.
FAQ
1. What are the payment terms?A: T/T, 30% down payment when ordering, 70% balance before shipment;After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.2. What does your company mainly produce?A: Our main products are vertical CNC engraving and milling machine, CNC drilling and tapping machine, high speed and high precision CNC machining center with gantry, linear rail type CNC machining center, roller guideway CNC machining center, horizontal machining center, column and gantry machining center etc.3. When is the delivery time?A: If the machine you ordered is a standard machine, we can prepare the machine within 30 days. If it is some special machines, the delivery time is about 45 days. Some machine models will be in stock, please consult the salesperson for details.4. What are your trade terms?A: FOB, CFR, CIF, DDP, DAP, FCA, etc.5. What is your minimum order quantity and warranty period?A: The minimum order quantity is 1 set, and the warranty period is 1 year. But we will provide lifetime service for the machine.6. What is the packaging of the machine?A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
