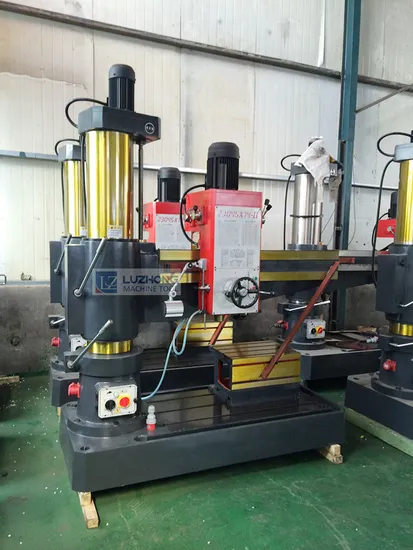

Z3050X14/II Drill 50mm Steel Metal Hole Radial Arm Drilling Machine

Product Description

Z3050X14/II Drill 50mm Steel Metal Hole Radial Arm Drilling Machine
Product Description
The main performance characteristics:
Mechanical transmission
Electricity clamping
Mechanical speed
Electricity take-off and landing,spindle promotion and inversion
Automatic feed Product Parameters
Product main technical parameters:

SPECIFICATIONS	Z3050×14/II
Max.drilling dia (mm)	50
Distance from spindle nose to table surface (mm)	300-1210
Distance from spindle axis to column surface (mm)	330-1290
Spindle travel (mm)	210
Spindle taper(MT)	5
Spindle speeds range(r.p.m)	78,135,240,350,590,1100
Spindle speed steps	6
Spindle feeding range(mm/r)	0.10-0.56
Spindle feeding steps	6
Rocker rotary angle (°)	±90°
Main motor power( kw)	4
Movements motor power (kw)	1.5
Weight (kg)	2300
Overall dimensions (mm)	2170×950×2450

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
