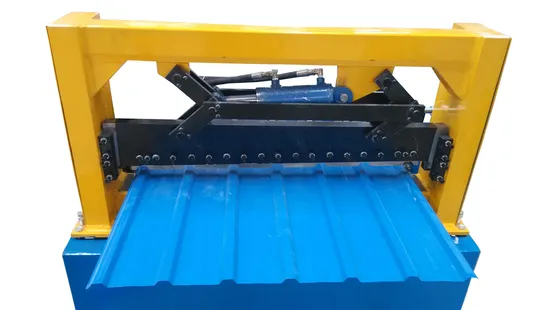

Roof Sheet Making Machine South Africa Price

Product Description

Focus on roll forming machine for more than 19 year
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

1.Roll Forming Machine (1) Material Thickness:0.3mm-0.8mm PPGI and GI (2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
2.Cut-Off Device
(1) Material for Cut-off Modular:Cr12mov after treatment (2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
3.PLC Control Box Type:PLC Frequency Control System with touch screen
4.Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen;
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.

5.Main Technical Data:
Model Number	YX13.7-875	YX25-840
Size	6500*1200*1500mm	6500*1200*1500mm
Weight	5500KGS	5500KGS
Motor Power	4KW	4KW
Hydraulic Power	1.5KW	1.5KW
Voltage	380V/50HZ/3PH	380V/50HZ/3PH
Forming Steps	14 steps	14 steps
Processing Speed	8-14m/min	8-14m/min
Thickness	0.3-0.6mm	0.3-0.6mm
Feeding Material Width	1000mm	1000mm
Effective Width	875mm	875mm
Height of Roofing	13.7mm	13.7mm

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.

Light Gauge Steel Framing Machine >>

CZ Purlin Roll Forming Machine >>

Standing Seam Metal Roofing Machine >>

- Company Profile -
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world. Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.And our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.

---
