US$9,000.00-14,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Engine
Japan Engine D1105
Max Digging Height
3700mm
Production Capacity
1000units Per Year
Product Description

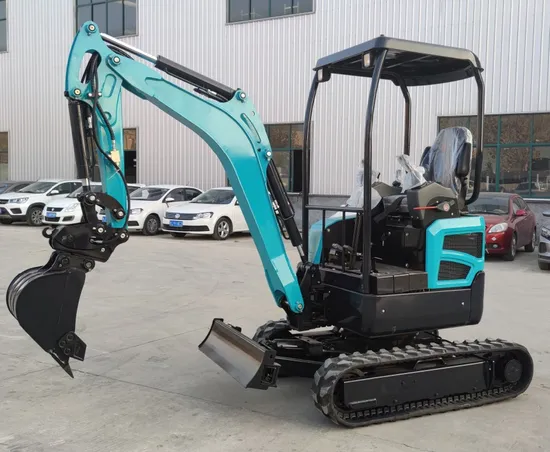

This HT20 crawler excavator is a compact excavator ,which matched Japan engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted famous brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system. ensure it can work in different working environments and conditions.
| ENGINE |
| Emission Standard | Euro 5 /EPA4 |
| Make | Japan diesel engine |
| Model | D1105 |
| Power /Rotation speed | 14kw |
| Number of cylinder | 3 |
| TRACK SYSTEM |
| Maximum Travel speed | 2.5/3.5km/h |
| Width of track shoe | 230mm |
| PERFORMANCE PARAMETER |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE |
| Overall dimension (L*W*H) | 3555mm*990/1300mm*2290mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 760mm/1070mm |
| Min.Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
>>
