Coalescence Filter Cartridge

Product Description

Product Description

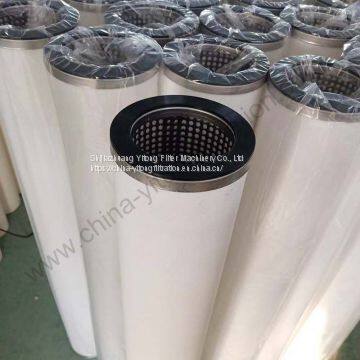

Coalescence Filter Cartridge
Description of Filtration Cartridge
Droplets of oil, water and other liquids are captured by the microfibers inside the coalescer. These micron-sized fibers form a tortuous path to the airflow, forcing solid particles and liquid droplets to collide in inertia, diffusion intercept and direct interception. Under the action of the filtration mechanism,Hydraulic Filter is captured by the ultrafine fibers, and the surface tension of the liquid causes the small droplets to coalesce into larger droplets, and the large droplets settle to the bottom of the container due to gravity.
The glass fiber coalescing filter element is made of high-density gradient glass fiber. It is designed as a monolithic tube structure to reduce damage and leakage. The surface of the filter element is treated with hydrophobic and oleophobic treatment to meet various precision grade requirements.
The polyester fiber coalescing filter element material is usually made of polyester fiber synthetic material and has good compatibility with various fluids. The filter element is spirally wound in a multiple layer structure. Each layer uses fibers of different properties to achieve the desired filtration accuracy by controlling the shape, size, thickness and density of each layer of fibers.
The coalescing filter element mainly uses surface-treated glass fiber or polyester fiber as the coalescence medium, and the structure of the filter material is specially designed to make the filter medium have good coalescence performance. Filtration accuracy up to 0.1μm
Product advantages about Glass Fiber Cartridge
Glass fiber coalescing filter high-density gradient glass fiber, high-efficiency coalescence liquid mist and liquid droplets, high filtration precision. The structure is stable, there is no media fiber shedding, and it will not pollute the environment and downstream of the product. Good compatibility with various fluids; good environmental friendliness, 100% synthetic material, complete combustion without residue.

---
