Optical Condenser Lens/Optical Aspheric Lens/Aspheric Optical Lens/Aspheric Condenser Lenses

Product Description

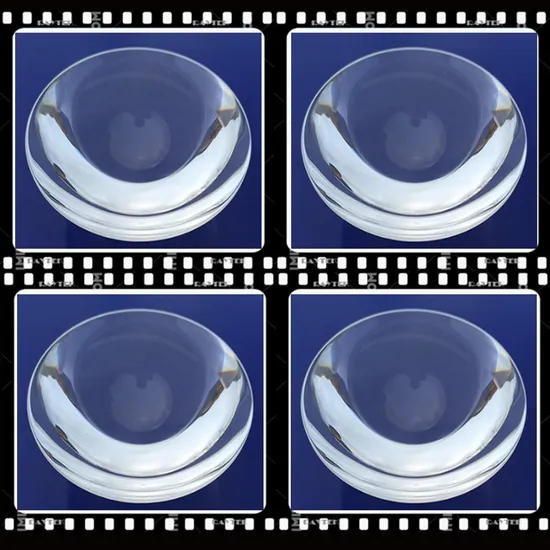

General Introduction: The Raytek condenser is made of B270 or equivalent glass and has a single layer of visible MGF Ψ antireflection film, which can provide excellent transmittance in the visible to near infrared region. The surface of the aspheric condenser is molded, while the flat or spherical surface is ground and polished. The product is very suitable for light collection, projection, lighting, detection and concentrating applications.
Products Name: Visible Aspheric Condenser Lens
Alias: Visible Aspheric Condenser Lenses, Aspheric Condenser Lens, Coated Visible Aspheric Condenser Lens, VIS Aspheric Condenser Lens, etc
Products Highlights:
1).MgF 2 antireflective coatings for 400-700 nm visible light
2).Schott B270 Ultra white glass or other custom materials
3).Molded aspherical condenser surface
4).Grinding polished spherical and flat surfaces
5).Aspheric lens surface can reduce spherical aberration
6).High precision & high surface roughness;
7).Sizes can be customized as per the customers' request
8).Quick lead time and delivery time.
9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
10).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Tech Specification:

Universal Optical Character Tech Data
Optical Lens Type:	Aspheric Condenser Lens
Lens Substrate:	Schott B270 Ultra-White Glass or custom as per the demand of customers
Surface Quality:	80-50 scratch-dig Or custom manufacturing as per demand
Coating Type:	Single-layer visible MgF2 Or custom manufacturing as per demand
Antireflection Coating Wavelength:	400-700nm Or custom manufacturing as per demand
Size/Specification Tech Data
Dia.	2.0 mm 3.0 mm 4.0 mm 4.7 mm 5.42 mm 6.35 mm 6.3 mm 6.5 mm 6.8 mm 7.2 mm 9.0 mm 9.9 mm 12.0 mm 15.0 mm 20.0 mm 24.0 mm 25.0 mm 30.0 mm 32.5 mm 35.0 mm 40.0 mm 45.0 mm 50.0 mm 75.0 mm or custom manufacturing as per demand
Effective Focal Length(EFL):	2.00 mm 2.72 mm 2.75 mm 2.80 mm 2.95 mm 2.97 mm or custom manufacturing as per demand
Other Available Coating Workcraft:	Uncoated 350-700 nm 400-700 nm 430-700 nm 600-1050 nm 650-1000 nm Or custom manufacturing as per demand
Other Available Lens Substrates:	B270 or equivalent D-LaK D-ZK3 D-ZLaF52LA18 D-ZLaF52La9 ECO5508 L-BAL 35 (589/611)48 7980/7979/7972/7973/SQ0/1/8655/SK1300/1310 NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.

---
