High Capacity Chain Conveyor Bucket Elevator for Grain Corn Maiz etc Used in Feed Flour Mill

Product Description

High Capacity Chain Conveyor Bucket Elevator
1. The structure and working principle of the hoist
Bucket elevator is a widely used mechanical conveying equipment. Its working principle is that the traction belt is wound between the head wheel and the bottom wheel, the bucket is fixed on the traction belt at a certain distance, and the shell seals the bucket and the traction belt. , The material enters the moving hopper from the machine base, lifts along the barrel, and is thrown out from the hopper at the machine head, and is discharged out of the machine through the discharge pipe.
The main components of the hoist: shell, head wheel, bottom wheel, traction belt (chain) bucket
2. Features of Bucket Elevator
1) Vertical conveying, compact structure, small footprint, simple;
2) It has good sealing performance and can work in a fully enclosed casing;
3) The lifting height and conveying capacity are large;
4) The sensitivity of overload is high, the bucket and traction parts are easy to be damaged, and it is not suitable for conveying large materials. It must be fed evenly, otherwise it is easy to block.

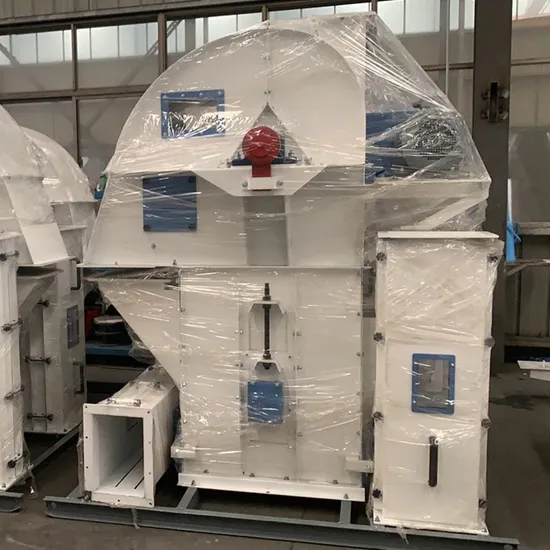

Bucket Elevator Photo:

ELEVATOR TROUGH ELEVATOR HEAD ELEVATOR TAIL
Bucket Elevator Model:

MODEL	BUCKET TYPE	SPEED	BUCKET DIMENSION	BOLT	CAPACITY M3/H
TDTG36/23	DQ2312	1.28	235×143×96	2-M8×35	20
TDTG36/28	DQ2814	1.59	285×143×96	3-M8×35	35
TDTGk40/23	DQ2314	1.49	235×155×90	2-M8×35	40
TDTGk40/28	DQ2814	1.86	285×155×90	3-M8×35	55
TDTGk50/23	DQ2314	1.49	235×155×90	2-M8×35	60
TDTGk50/28	DQ2814	1.86	285×155×90	3-M8×35	80
TDTGk50/32	DQ3216	2.36	330×165×111	4-M8×35	110
TDTGk60/28	DQ2816	2.31	290×165×108	3-M8×35	120

Good Machines From Good Tools :
LASER CUTTER ROBOT WELDING POWER COATING

Spare Parts :

PVC BELT NYLONE BUCKETS ELEVATOR TROUGH

PERFORMANCE ON SITE
What Types of Project We Can Supply
we can supply full turnkey project as below : @ poultry and large animal feed production line @ premix plant @ fish and shrimp feed prodcution line @ corn flaking line @ wood biomass pellet line @ fertilizer pelleting line
FAQ 1. Q: Are you a trading company or a manufacturer? A: We are a professional manufacturer will pellet machinery, which has almost 13 years of experience in this feed pellet machinery industry. Trust Me, Choose Gamma Tech is the best decision you ever made. We have professional R&D team, design team , production team ,sale team and after-sale team, we will provide the most professional service for you . 2. Q: How can I get to your company? A: You can get a flight to shanghai Airport. We are just about 2hours away from shanghai Airport. Welcome To Visit Gamma Tech factory and project case in China. 3. Q: How long is your warranty time? A: one year(Calculated from the equipment arrives the customer's side.). After this period we will definitely support you we have online trouble shooting and some makets we have local supervisor for support . also we can send engineer from china if we cannot solve by other way. 4. Q: Will you send engineers to install the plant? A: yes, We can arrange the professional technical engineers to installed for you , but at an extra cost payable by the customer. On The time, our engineer will train your team how to operate all the complete line. Or you can get local contractors to do the commissioning and we send one supervising engineer. 5. Q: Do you have some foreign customers using your equipment? A: yes, we have.our company has established business relationships with customers in Poland, Clumnbia ,German,Slovakia,Ukraine,Vietnam,Algeria, Saudi Arabia, Qatar,Afghanistan, Indonesia, Thailand, and other countries. 6.Q:What capacity of your equipment ? Can You design the sheme for me ? A: Our equipment can meet 1-100t/h capacity requirement. We can free design the different project sheme for you . Include the 1-production construction design drawings, 2-steel structure full drawing and steel material list; 3-plant and sectional layout graph of workshop drawings. 4.steel structure construction drawings, 5-the detailed steel structure drawings and materials list;6-diagram of floor, roof and wall reserved hole ;7-Oscillatory coefficients of equipment.

---
