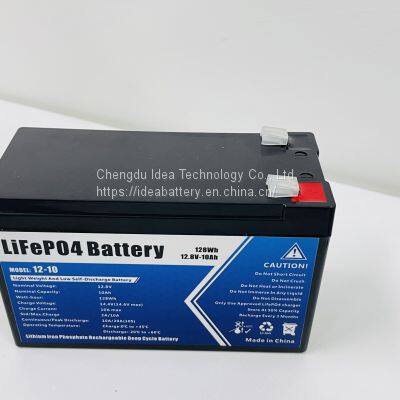

| Part No.： | LQ-1210 |
| Spec | 12.8V10Ah |
| Dimension(±2mm) | 151*65*100mm |
| Weight(Appro)(kg)： | 0.9 |
| Normal Voltage(V) | 12.8V |
| Normal Capacity(Ah) | 10Ah |
| Terminal(mm) | T2 |
| Max charge current(A) | 10A |
| Max continue discharge current(A) | 10A |
| Max peak discharge current(≦10S)(A) | 20A |
| Floating charge voltage(V) | 13.6~13.8 |
| Max load power(W)： | 100 |
| End voltage of discharge(V)： | 10.8 |
| Cycle life(25℃,0.5C,100%DOD) | >2000 |
| Combination mode： | 26800-4S2P |
| Protection： | IP65 |
| Certificate： | UN38.3/MSDS |
| Temperature range of charge(℃)： | 0~+50 |
| Discharge temperature(℃)： | -20~+60 |
| Operation temperature: | <95%R.H(non-condensing) |
| (Note：Blue tooth can be available for the capacity over 50Ah if needed;no pile up over 10 layers, and keep face up) | |
