A2 A3 A4 Paper Roll to Sheet Cross Cutting Machine with Wrapping

Product Description

Automatic A4 Paper Cutting And Packaging Machine in Line
It is suitable to convert jumbo rolls to sheets,specially cutting and slitting 20-450 gsm cardboard paper,craft paper,coated paper,laminated craft paper,self adhesive paper.It is suitable for A4 copy paper,food packaging business,printing industry.
Performance and Characteristics
This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic,photo paper material,etc.
• It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
• It adopts pneumatic,photoelectric sensor for controlling transminssion system, with photo,electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.
• This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.
• This machine can be with 1 roll.2roll.4roll loading systerm.
Main Technical Parameters

Model	HQJ-1100A4	HQJ-1400A4
Max.width of cutting	1100mm	1400mm
Max diameter of material	φ1400mm	φ1400mm
Min.width of cutting	50mm	50mm
Length of cutting	20-400mm	20-400mm
Speed	10-180times/min	10-180times/min
Precision	±0.2mm	±0.2mm
Total Power	15kw	17kw
Weight	8000kg	8600kg
Overall dimension(LxWxH)	12000x1900x2000mm	12000x2200x2000mm

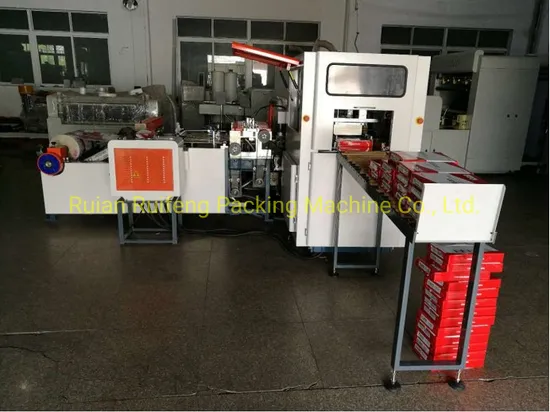

machine detail photoes
Company Profile The company is located on Ruian city belonged to South Zhejiang, which has convenient traffic and long history of machinery manufacture. We have our own factory RUIAN RUIFENG PACKING MACHINE Co., Ltd since 1996, As a professional manufacturer of plastic bag making machines, we can supply various plastic bag making machine such as flat bag making machine, vest bag making machine, three sealed zipper bag making machine, bubble film bag making machine, etc. And we also supply the film blowing machine, film laminating machine, printing machine and other relative plastic machine.Since the foundation, the company has taken up with the ideal of "quality first, seeking for outstanding ", emphasized on internal management and after-sales service, paid attention to technology improvement and information, persisted in the teamwork between manufacturer and traders so as to base itself upon marketing, taken part in competitive strategy and policy to obtain development for itself.Facing up with furious competition, the company will stick to the tenet of "emphasize on quality, abide by credit", and will offer clients with perfect after-sales service.We sincerely welcome friends from home and abroad to hold trades with us, and to achieve success together.

---
