Ws-6990 DVB-T Modulator Transformers for Projector with HDMI Input Compact and Wall Mountable

Product Description

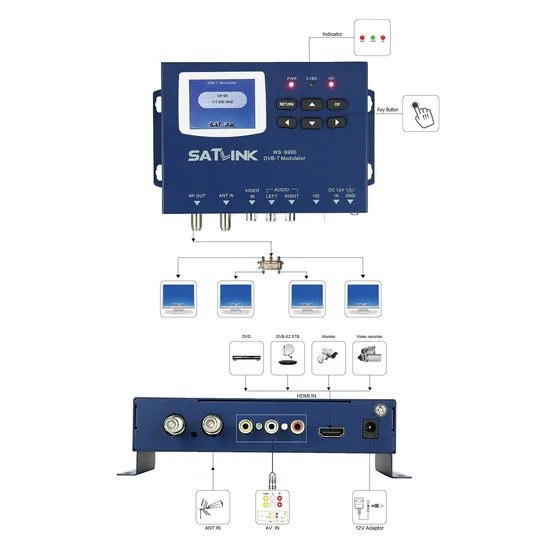

WS-6990 DVB-T modulator is developed to adapt terrestrial digital television. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out.

High level of integration, high-performance, Full-featured, integrated design
Single input modulator that converts analogue A/V source to a DVB-T
channel
Standard COFDM modulation and H.264 encoding
Multiple video format compatibility including 576i(PAL) / 480i(NTSC) / 1080p
Bandwidth: 6/7/8MHz
Frequency range: 50~860MHz
Continuously adjustable RF signal output level range 70dBuV from 100dBuV,
step 1dBuV
2.4-inch color LCD display
Small size and light weight
Carriers 2K and 8K
User friendly setup and control
Compact and wall mountable

TECHNICAL SPECIFICATION

Modulator	Standard	DVB-T
	Constellation	QPSK / 16QAM / 64QAM
	Bandwidth	6 / 7 / 8 MHz
	Carriers	2K / 8K
	Guard Interval	1/4, 1/8, 1/16, 1/32
	Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
	MER	35 dB
	Frequency Range	50 ~ 860 MHz
	Output Level	70 ~ 100 dBuV
	Output Impedance	75Ω
Video	Input Format	CVBS/HDMI
	Encoding Format	H.264
	Video Resolution	576i PAL / 480i NTSC/1080p
	Connector	RCA/HDMI 1.3
Audio	Input Format	Stereo L/R channel
	Encoding Format	MPEG-1 Audio Layer II
	Connector	RCA
General	Power Source	DC 12V / 1.5A
	Operating Temperature	0 ~ +50°C
	Dimensions	155mm(L) × 114mm(W) × 33mm(H)
	Weight	0.5Kg

---
