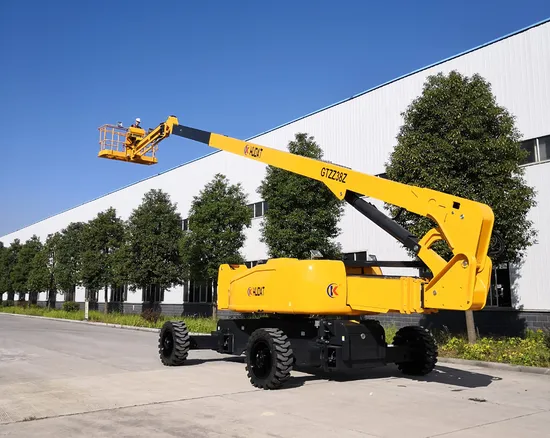

Hot Sale 12-28m Electric Articulating Boom Lifts Aerial Working Platform

Product Description

-Made of high strength steel, and the European production of hydraulic, control, parts;
-Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
-Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
-Outrigger separately controlled to bypass obstacles in a limited space work;
-Reliable torque control to ensure that the vehicle will not roll;
-Wired remote control walks, working bucket with 220V outlet;
-Small size, compact and flexible;

	Wuhan Kudat Industry & Trade Co.,Ltd
12-28M Electric Articulating Boom Lifts
Technical Parameters
Model		RZ12E	RZ14E	RZ16E	RZ18E	RZ20E	RZ22E	RZ26E	RZ28E
Size
Max working height	m	12	14.4	16	17.8	20.1	22	26.2	28
Max platform height	m	10	12.4	14	15.8	18.1	20	24.2	26
Max horizational outreach	m	6.4	7.4	7.8	9.55	11.6	12	15.4	17.6
Max Up&over clearance	m	4.78	6.4	7.7		8	9.2	10.2
Platform dimensions(LxW)	m	1.1x0.65	1.53x0.76		1.83x0.76			2.44x0.91
Length(stowed)	m	4.35	5.85	6.34	7	8.27	8.67	10.65	11.82
Width(stowed)	m	1.5	1.75		2	2.38		2.48	2.58
Height(stowed)	m	1.99	2.07	2	2.3		2.47	2.91	3
Wheelbase	m	1.65	1.9		2.5			3
Ground clearance(center)	m	0.15	0.2		0.34			0.31	0.37
Performance
Max lift capacity	kg	200	230
Max platform occupancy		2	2
Platform rotation		120°	±90°
Vertical jib rotation		-	135°
Turntable rotation		355°			355°			360° Continuous
Drive speed(stowed)	km/h	5						4.2
Drive speed(raised)	km/h	0.8
Gradeability		40%			45%			30%	45%
Max working slope		3°/3°					5°/5°
Turning radius(inside)	m	1.5	1.78		1.72	1.87		2.76	2.57
Turning radius(outside)	m	3.45	4.07		4.4	4.89		6.09	6.11
Drive & steer mode		4x2x2			4x4x2
Tire type		590x190 660x170	250/15		33x12-20			36x14-20	385/65-22.5
Power
Battery	V/Ah	48/240		48/400				80/560
Pump motor power	kW	5			12			23
Drive motor power	kW	2x4			4x3	4x4
Charger	V/A	48/35		48/60				80/80
Control Voltage	V	12
Weight	kg	4800	6200	6800	8200	9000	9835	15000	17000
Standard Compliance		EN280:2013+A1:2015 GB25849-2010

---
