Universal Knee-Type Milling Machine X6140

Product Description

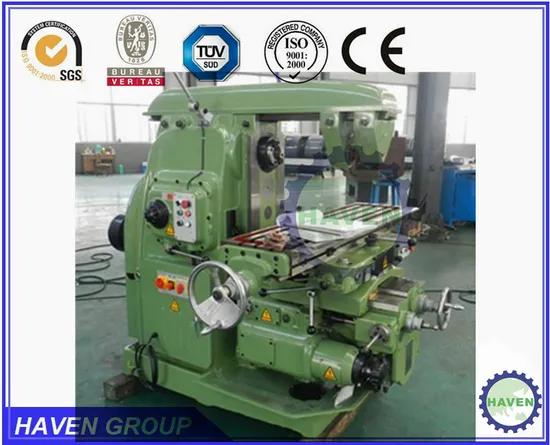

Universal Knee-Type Milling Machine X6140
(Picture for reference)
The Universal Rotary-head Knee-type milling machine X6140 is widely used in the machining workshop, with optional accessories as vertical milling head, dividing head, rotary table, machine vice, milling chuck, etc.
Standard Accessories
Milling-cutter Mandrel
Milling-Milling machine with the middle set of taper
Milling machine mandrel(3sets)32#, 27#, 22#
Milling cutter Mandrel wrench,
Milling drawbars(2), Oil gun, wrench
Nut, Foundation screw
Optional
Vertical milling head
Dividing head
Milling chuck
Machine vice
Rotary table
Digital readout(2 dimensional or 3 dimensional)

Item	Parameter
Worktable area(width*length):	400*1700mm
Max. Longitudinal travel(manual)/(power)	900/880mm
Max. Transversal travel(manual)/(power)	315/300mm
Max. Vertical travel(manual)/(power)	380/360mm
T-slots(number of slot-width*pitch):	3-18*90mm
Distance between spindle to table surface	45-415mm
Spindle taper	7: 24/ISO50
Spindle bore	29mm
Vertical milling head max. Swivel angle	± 45
Spindle speed range	18steps: 30-1500rpm
Milling head motor	11KW
Feed motor	3kw
Coolant motor	0.125kw
Package size(L× W× H)	2590× 2200× 1900mm
Machine Weight	3600/3850kg

WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting

Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige

---
