Product Details
Product Description
Product Description

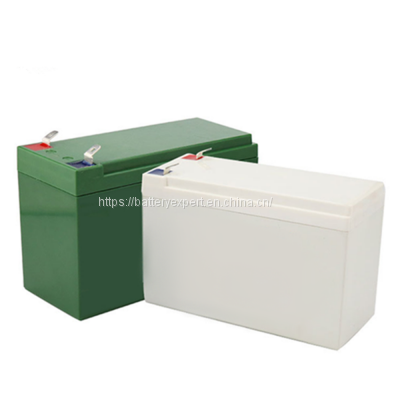

LiFePO4 12V 12.8V 6Ah 7Ah 10Ah 12Ah 4S3P 26650 26700 LiFePO4 Deep Cycle Battery
LiFePO4 deep cycle replace lead acid battery Power storage battery sealed5000 Deep Cycles life 12V 7Ah LiFePO4 Lithium Battery with Built-in BMS for Small UPS, Solar Power, Speaker and Outdoor Camper
| No. | Item | Specification | Remarks |
| 1 | Brand Name | OEM |
|
| 2 | Model No. | IFR12V6Ah-12Ah |
|
| 3 | Norminal Capacity | 6Ah 10Ah 12Ah 4S3P by 26650 x 12pcs | 0.2 C5A discharge |
| 4 | Nominal Voltage | 12.8V |
|
| 5 | Discharge Voltage (Min.) | 7.5V |
|
| 6 | Charging Voltage (Max.) | 14.6V |
|
| 7 | Charging Current (std.) | 0.2 C5A |
|
| 8 | Discharging Current (Max. continue) | 2 C5A |
|
| 9 | Discharging Current (Max. temporary) | 3 C5A |
|
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH |
|
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH |
|
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH |
|
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH |
|
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH |
|
| 13 | Battery Type | LiFePO4 battery 26650 3000mAh-4000mAh |
|
| 14 | Internal Impedance |
|
|
| 15 | Protection Fuctions | Over charge, Over discharge,
Over load, Short Circuit |
|
| 16 | Size | 150*65*95 mm |
|
| 17 | Weight | Approx. 1.05kg with plastic case |
|
| 18 | Cycle Life | 5000 times |
|
| 19 | Warranty | 12 months |
|
Typical Advantage of our lithim ion battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 800 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
>>
