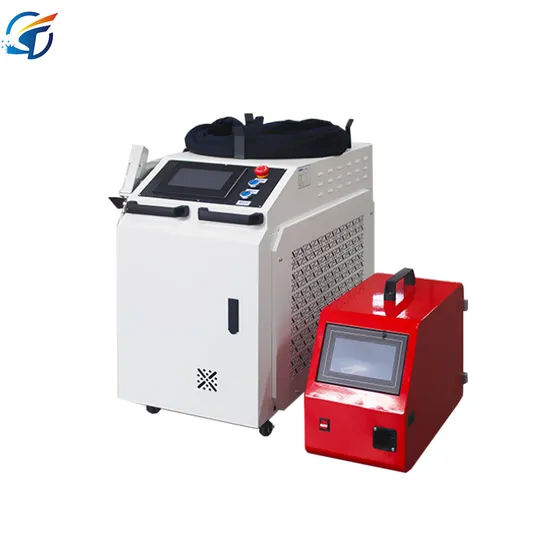

Industrial Laser Welding Machine, Stainless Steel Copper Aluminum Laser Welding Machine

Product Description

Company profile

The company's leading products are: fiber laser welding machine, laser rust machine series. With fully automatic series of laser processing equipment production line, you can provide customers with laser processing equipment, but also to provide customers with processing solutions. Products have been widely used in electrical appliances, hardware products, auto parts, tool parts, precision instruments, glasses, watches, integrated circuits and other industries.

Device parameters and configuration

Model number	Hand laser welding
Power	1000w/1500w/2000w/3000w
Type of cooling	water-cooling
Wielding thickness	2.5mm/3.5mm/4.5mm/6mm
Applicable material	Stainless steel/carbon steel/galvanized sheet/iron/aluminum/aluminum alloy/gold/silver
Gap requirement	According to the different welding thickness, the gap can be welded within 0-2mm
Feed specification	0.8/1.0/1.2/1.6, double wire feed 0.8/1.0/1.2/1.6/2.0/2.5
Power supply	Single-phase AC 220V/50Hz-60Hz

Boot procedure:

1: Connect the aviation plug of the power cable to the fixed aviation plug on the device. Check whether the power cable is properly connected to the 220V socket with ground cable
2: Connect the triangular plug of the power cable to the power supply. Ensure that the power supply of the device is 220V,50/60Hz, and is well grounded.
3: The device is powered on when the rear of the device is empty and up, and one heat dissipation fan is powered on.
4: First press the (system) button on the operation panel, the touch screen is powered on, and then press the (laser) button, the laser generator is powered on.
Note: The emergency stop button should be kept in the elastic state, and the power will not be powered when pressed.
5: Open the dust cover on the handheld head mirror, the laser on the touch screen turns red, press the switch on the handheld head to emit the laser.
6: When the device is shut down after use, the above 5 points are reversed in order.
Frequently Asked Questions
Q1: Are you a manufacturer or trader?
A1: We have been producing CNC machine tools since 1999 and have our own international trade department.
Q2: Do you require a minimum order quantity?
A2: Welcome to order with samples. The MOQ is very flexible.
Q3: How do you ensure quality?
A3: We have our own quality control team and certificates, all orders will be tested before shipment and we do provide video inspection.
Q4: How much is the shipping charge for the sample?
A4: It depends on the model you get, as well as the quantity + your shipping address.
Q5: What about the transportation situation?
All modes of transport are welcome, usually our customers ask for CIF, DDP, DDU, FOB, etc.
Q6: How about after-sales service?
A6: We have a professional team of after-sales service fees, we will reply within 6 hours. We offer various warranties depending on the model of your order, please contact us for details.
Q8: What about the lead time?
A8: Usually around 7-15 A large order takes a few days, but this certainly depends on the specific model, order quantity and the specific time you place your order, so we recommend you check with us before ordering.

---
