Product Details
Product Description
Product Description
PRODUCTS DESCRIPTION

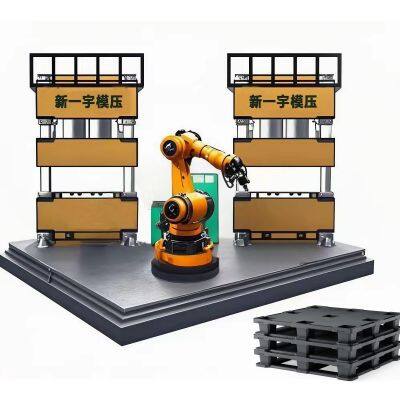

Molded plastic pallet making machine is a type pallet making machine which manufacturing pressed plastic pallet, with advantages of high precision, high durability, high automation, and better molds design.
PRODUCT PARAMENTERS
| 1250T | 1600T |
| Master cylinder nominal force(KN) | 12500 | 16000 |
| Maximum working pressure of liquid (MPa) | 25 | 25 |
| Cylinder stroke(mm) | 700 | 700 |
| Maximum opening height(mm) | 1250 | 1200 |
| Nominal force of lower cylinder（KN） | 400 | 400 |
| Lower cylinder stroke(mm) | 200 | 200 |
| Master cylinder slider speed No-load downlink (mm/s) | 160 | 180 |
| Workbench effective area Left and right (inside the column)(mm) | 1700 | 1800 |
Servo motor power (KW)
| 45 | 55 |
PRODUCTION PROCESS
Shredding--Banbury mixing---extruding---cold pressing.
YIYUPRESS waste plastic recycling system equipment has the following advantages:
1.Whole frame structure provide better supporting system, assures the precision of closing molds and the stability of pressing during the working of press machine. 2.The raw materials of the pressing machine are all the durable materials, to minimize maintenance of the machine. 3. Plastic pallet making machine can achieve all the process automatically controlled by PLC system.
DIVERSIFIED MATERIALS
Raw materials suitable for plastic pallet machine can be waste plastic, plastic bottle, plastic pellet, and plastic material and so on. Compressed plastic pallet making machine is the perfect equipment for plastic recycling.
OUR PACKAGING
OUR FACTORYThe factory covers an area of 6,000 square meters and has a full set of advanced molded pallet production lines. It is a high-quality provider of molded pallet overall solutions. The company's pallets are diverse in style and leading in quality. It can design and develop exclusive styles of molded pallets and production molds for customers' products. We practice the development and management concept of linkage between pallets and production equipment, continuously optimize production processes and equipment performance, tailor a full set of molded pallet production lines for customers, and become a leader in the molded industry integrating R&D, production and sales.
product packaging
our factory
The factory covers an area of 6,000 square meters and has a full set of advanced molded pallet production lines. It is a high-quality molded pallet overall solution provider. The company's pallets are diverse in style and leading in quality. We can design and develop exclusive molded pallets and production molds for customers' products. We practice the development and management concept of linking pallets with production equipment, continuously optimize production processes and equipment performance, and tailor a full set of molded pallet production lines for customers, becoming a leader in the molded industry integrating R&D, production, and sales.
FAQ
1. Loading capacity of the pallet?
A: Normal loading capacity for a 1200*1000mm pallet is 2000kgs dynamic, and 6000kgs static. High loading capacity can be made as per request.
2.Can the mould be custom made? Can we do our own logo?
A: Yes, all mould as design and produce by our professional team at your own design or by request. Custom logo can be engraved on the mould.
3.Do you have automatic operation line?A: Yes, we have fully automatic operation line and manual operated line available at your request.
4.How many person needed for one production line.
A:Normally 2 person for one shift can handle up to 2 sets of press machine under manual mode.
5.Can your team go overseas for the installation?
A: Our engineer can help with the installation, staff training and maintenance training at your site with cost.
>>
