Best Price H Frame Battery Chicken Layer Cages for Sale

Product Description

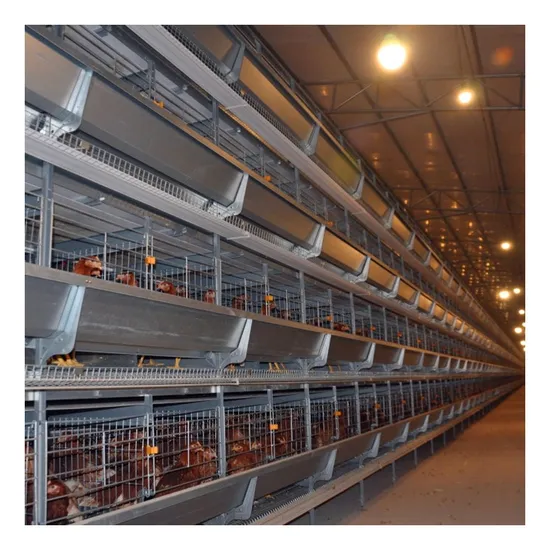

H FRAME BREEEDING CHICKEN CAGE SYSTEM
This system is the professional design for layer or broiler breeding chickens in H frame cages, It is working as nature mating that male and female breeders in same cages. There is no grids in every set of cages, therefore the breeding chickens can move without limitation. They will get more comfortable living space which can give them more vitality.
CAGE SYSTEM
This cage is designed in 2/3/4 tiers and we can observe the mating and laying situation in cages timely with convenience. The cage width is 1200mm,each section standard length is 1800 mm, each unit can hold 22/32 birds(the basic technical data as follows),each breeder can get average floor space is 675/981 sq. cm.
It improves the mating and egg laying rate. meanwhile, the breeding eggs with higher vitality means higher incubation rate and more healthy baby chickens by this system.

Item No.	tiers	cage dimension/tier	birds/cell	birds/set	cm2/bird
PT-HLB02	2	1800*1200*650	22/32	44/64	675/981
PT-HLB03	3	1800*1200*650	22/32	66/96	675/981
PT-HLB04	4	1800*1200*650	22/32	88/128	675/981

The cages designed without cage meshes on top in case of hurting on male breeders while mating, as male breeders is much bigger than the female ones. It has perched unit in the middle of the cages it is easy to be accepted by breeders, as well as the matching.
The front part of cages is fixed by grid, composed of vertical grille, guaranteed that the male chickens has the optimal feeding conditions if needed, and prevent the comb hurt, another part is sliding grid, it can fully open and convenient to operate such as getting breeding chickens inside and outside, the grid is separated in level, it provides appropriate conditions to the feed of the male and female breeders, they can choose the distribution of grille freely.
Each cage are separated by the closed partition board which made of hot galvanized steel sheets with thickness 1.10mm, it ensures the chicken between different groups is completely isolated, and keep peaceful and quiet space for chickens. meanwhile, the partition board with holes also supply enough ventilation to the chicken house.
FEEDING & DRINKING SYSTEM
Both of the traveling hopper machines or the chain feeding system are available.
The hopper machines are preferable because it gives same feed materials to breeder chickens in front and back ends evenly and smoothly; each feeding circuit has one driver, no additional transmission components, deep feed trough avoid feed waste.
Same as other H frame layer cage systems, the feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe with 90-150 mm diameter. The Augers materials made in South Africa, also the best quality worldwide.
Drinking line are equipped by the water filters, medicator to ensure the water cleaning, the water regulators, terminals and splits system all coupled same as other H frame cages.
FAQ:
1. Q: What kind of products do you have?
A: We provide all kinds of equipment for chicken farms, such as Chicken Cages, Automatic Drinking and Feeding System, Automatic Egg-collection System, Automatic Manure Removal System, Temperature Controlling System, etc.
2. Q: How many days will you deliver the products if I place the order?
A: Depends on the quantity you request, in 7 working days or 30 working days.
3. Q: How to install the cages when I get them?
A: If you want install the cage yourself, we will provide the Installation Manual.
If you need the professional engineer, we will send our engineer who can speak English Fluently.
4. Q: Could you please tell me the detailed information of cages? and how to get the cages?
A: Contact Kevin, you will get the detailed answers from him.
Our Aim is to make your Farm Raising more Convenient and Efficiency. Welcome to Inquiry and Visit Our Factory anytime

---
