TPR/TPU Covered Suction Hose for Water Construction and Viscous and Grain Sand Suction

Product Description

Suction Hose with TPR/TPU Covered for Water Suction Construction and Viscous / Grain / Sand Suction
Product Description
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Richflex 10

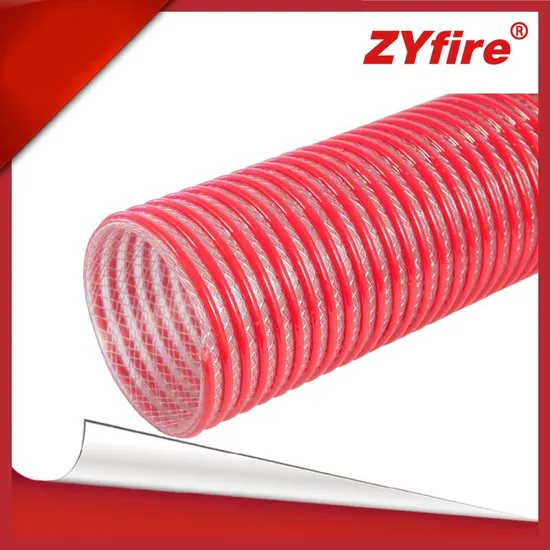

TPR Covered hose
Construction: TPR tube and sturdy clockwise TPR helix with high tensile strength polyester yarn reinforcement.
Temputerature: -15ºC to +60ºC (+5ºF to +140ºF)
Application: HD fish suction and transfer, HD water suction and transfer, construction and trash pumps.

I.D.		O.D.		Weight		Max w.p.@68ºF	Vacuum@68ºF	MBR*		Std.lgth
inch	mm	inch	mm	Kg/m	Lbs/ft	Psi/bar	kpa	inch	mm	ft
1 1/2"	38.10	2.03	51.56	0.68	0.46	72.5/5.0	94.0	2.5	63.5	50
2"	50.50	2.56	65.00	1.28	0.86	72.5/5.0	94.0	5.0	127.0	50
2 1/2"	63.50	3.01	76.45	1.52	1.02	72.5/5.0	94.0	5.0	127.0	50
3"	76.20	3.70	93.98	1.85	1.24	58.0/4.0	94.0	6.0	152.4	50
4"	102.00	4.74	120.50	3.2	2.15	43.5/3.0	94.0	7.5	190.5	50
5"	127.00	5.77	146.50	4.00	2.69	43.5/3.0	94.0	9.0	228.6	50
6"	152.00	6.95	176.50	5.00	3.36	43.5/3.0	94.0	10.0	254.0	50
8"	203.00	9.13	232.00	8.50	5.71	43.5/3.0	94.0	16.5	419.1	50
