Pneumatic Hfc-227ea/FM200 Gas Booster Pump Supercharging, Conveying, Filling Equipment

Product Description

Product Description
RODUCT DESCRIPTION:
TEREK pressurization and filling equipment with automatic weight control function, using pure compressed air as the driving power source, gas booster pump as the pressure source, FM200, HFC-227ea, oxygen, nitrogen, N2O, CO2 and other gases as the pressurized medium. The output pressure is proportional to the driving gas pressure. By adjusting the pressure of the drive gas source, the corresponding pressure of the pressurized gas can be obtained. When the pressure of the driving gas source is balanced with the pressure of the pressurized gas, the pneumatic booster pump will automatically stop and the output gas pressure will stabilize at the preset pressure. Therefore, it has the characteristics of explosion-proof, energy-saving, environmental protection, adjustable output pressure, small size, light weight, simple operation, reliable performance and wide application range.
The filling equipment uses compressed air as the power source for filling and conveying HFC-227ea/FM200. When the conveying weight reaches a certain value, the sensor signal is transmitted to the gas electromagnetic valve, the air supply is closed, and the pump stops working. Then connect the nitrogen source, open the high-pressure nitrogen valve and inject nitrogen; When the value displayed by the precision pressure gauge reaches the required nitrogen pressure, close the nitrogen valve; Filling complete; Our equipment has the characteristics of small size, light weight, simple operation and reliable performance. It is especially suitable for filling FM200/sevofluoropropane in the fire industry.
PRODUCT DETAILS:

Product name	FM200 NOVEC Automatic Weight Control Model Pressurized and Filling Equipment
Model	TEF-RTE-06-DD
Medium	FM-200 Gas extinguishing agent
Pressure ratio	6:1
Drive air source pressure	3-8bar.
FM200 Maximum outlet pressure	48 bar (4.8 MPA / 696 PSI)
Maximum Nitrogen filling pressure	100 bar (10 MPA / 145 PSI)
Outlet pressure control unit	Drive air regulator valve
Nitrogen filling pressure control	Nitrogen pressure regulating valve
Nitrogen output pressure	0-100bar adjustable
FM200 medium filling pressure	Maximum 36 bar.
Vacuum pump vacuum coefficient	-0.086MPA.
Power source	TEREK gas booster pump
FM200 filling control unit	Electronic scale weight control system
Cylinder filling pipe linkage	Quick coupling (Customization)
FM200 inlet and high pressure outlet	NPT1/2 Internal Thread
Supply voltage	220V/ 50HZ
Pressure control accuracy	Less than 1%F.S;
Pressure measurement accuracy	0.4 pressure gauge
Valves and piping	High pressure needle valve and stainless steel piping
Drive air medium source	Compressed air
Drive air inlet	PU pipe 12mm
Air consumption	0.8-1.2 M³/min
Weight accuracy	±1 Kg
Filling weight range	0-500 Kgs
Noise	<75db
Weight	110 KG
Export wooden case weight	140 KG
Packing specifications	Standard export wooden case
Packing size	1150*950*1180mm
Production time	15-18 working days.

PRODUCT PICTURES
System configuration:

The filling equipment uses compressed air as the power source to drive HFC-227ea/FM200 filling and conveying. When the conveying weight reaches a certain value, the sensor signal is transmitted to the gas electromagnetic valve, the gas supply is closed, and the pump stops working.

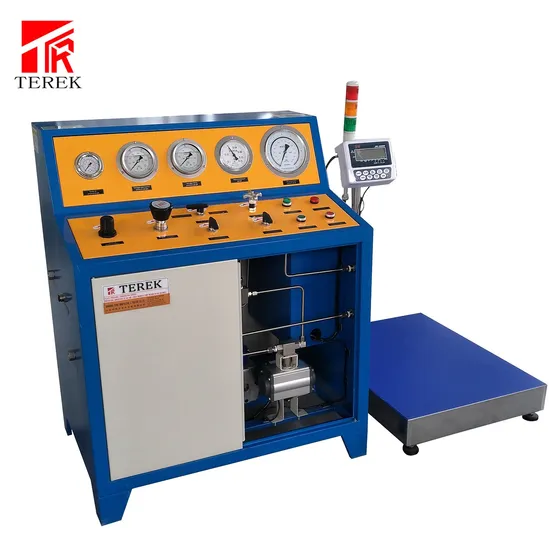

FM200 fire extinguisher gas cylinder automatic weight control booster filling system equipment mainly includes 1 set of pneumatic booster pump, vacuum pump, pressure gauge, air pressure control valve, nitrogen pressure control valve, high pressure stainless steel pipeline, cabinet, electronic scale automatic weighing system, sensor, gas electromagnetic valve and electrical component control system.
The equipment is controlled by a filling weight system of electrical components, and the fill weight can be set in advance. When the filling weight reaches the preset value, the air-operated booster pump will automatically stop filling, and the start or stop filling of the air-operated booster pump is controlled by a solenoid valve. The scale has an indicator light.
Then connect the nitrogen source, open the high-pressure nitrogen valve and inject nitrogen; When the precision pressure gauge shows the required nitrogen pressure, close the nitrogen valve; Filling complete. It has the characteristics of small size, light weight, simple operation and reliable performance. It is especially suitable for filling FM200/sevofluoropropane in the fire industry.
WHY CHOOSE TEREK:

Our equipment has reliable structure, long life, high stability, no need for electricity, and simple maintenance.
Safe operation: gas driven, no arcing and no sparks, can be used in hazardous locations.
Flexible application: Different series of pumps can be used to obtain different pressure and flow ranges.
Simple maintenance: Compared to other air-driven pumps, air-operated booster pumps can perform the same work as other gas-driven pumps, but with fewer parts and seals, maintenance is easier.
Automatic pressure holding: Whatever the cause of the pressure drop, the pump will automatically start, keep the loop pressure constant.
All our high pressure valves, pipelines and joints are made of stainless steel.
Application Fields:

This equipment adopts automatic control of filling weight to realize automatic pressurized and filling.
Improve filling efficiency and accuracy of filling weight. Used to fill FM200 fire extinguisher medium or similar medium, from low pressure medium to high pressure medium, the FM200 maximum output pressure of medium up to 48bar. The maximum filling pressure of nitrogen is 100bar. It is especially suitable for filling FM200/ HFC-227ea in fire fighting industry.
PACKAING&Shipping:


FAQ : Company Information.
1.Q : Are you manufacturer ?
A: Yes, We are the manufacturer with continuous and improved R&D. Production, Quality Check and service supply.
2.Q : Can I get your price list ?
A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.
3.Q : Do you have stock for all items?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
4.Q : What is payment terms ?
A: Sample order : 100% full payment before start to production;
Large order : 30% deposit first, 70% pay after see the BL copy ;
5.Q: Can give free sample ?
A : Free : if small spare parts and the cost not too much is ok ;
Not Free : the cost expensive and all the machine can not be free ;
6.Q : How long can be finished the goods ?
Delivery date: 5-30 working days after deposit paid
Two years warranty, when the products reach to destination.

---
