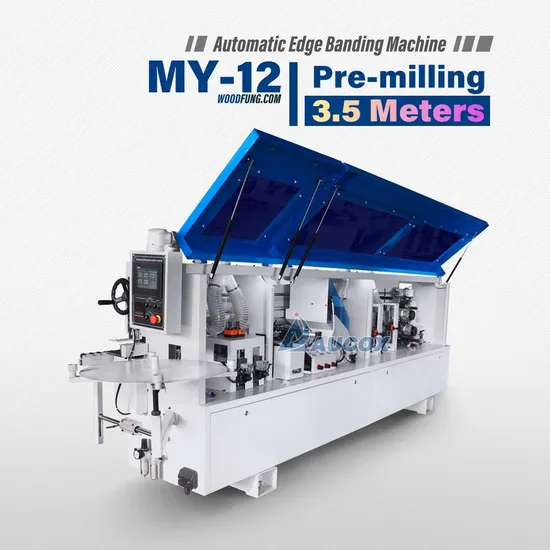

Woodworking Machinery 3.5m Compact Pre-Milling Automatic Wooden Furniture Edge Bending Machine

Product Description

MY-12 3.5 meters automatic edge banding machine with Pre-heating,separator nozzles, pre-milling, gluing, pressing, end cutting,fine trimming,arc scraping,flat scraping,cleaning functions Advantage Aluminum alloy pressure beam equipped with automatic lift, thickened body, stable operation.
All accessories are of well-known brands such as Chint,Roany, Besten, Delta, etc.
The touch screen control system is very easy to operate. And it can be customized for your language.
Motorized lifting of the pressure beam.
Pre-milling flattens the board to ensure a finer glue line.And it has separator nozzles to ensure that the board are not
contaminated with wood chips.
Classic gluing structure with even gluing and precise cut off Maximum capacity 5L.
The pneumatic press wheel set is equipped with a glue scraping device to avoid mistakes caused by glue sticking to the press wheels.

Model	MY12 full automatic edge banding machine
Functions: pre milling,gluing,end cutting,fine trimming,flat trimming,and polishing
Voltage	380V/220V	Total Power	10.6KW
Panel width	10-45mm	Edge banding thickness	0.4-3.0mm
Feeding speed	12m/14m/18m/min	Edge banding width	12~60mm
Overall size	3.5x0.72x1.2m	Working pressure	0.7Mpa
Pack	Wooden box	Net weight	1150kgs
Pack size	3.9x0.75x1.3m	Gross weight	1250kgs

Details Images
EDGE BANDER
SOFT VANEER,PVC,ACRYLIC,PMMA,ABS EDGE BANDERS
Automatic Edge bander application:
kitchen,cabinet,door,des,etc.










FAQ
Q1: What is the warranty for the machine?
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
Warranty
1. AUCOX Provide 15 months warranty for all customers.
2. During warranty, we provide free normal spare parts once machine has probem.
3. AUCOX will solve customer's machine problem within 24 hours from the time problem raised.
4. AUCOX has enough spare parts for machines.
5. When machine out of warranty, AUCOX still provide free technical support and spare parts charged to customers.
ATTENTION:all machines in the website is always improving,if there is a little changed,no care.it is not influence the
usage,better quality for always improvement.

---
