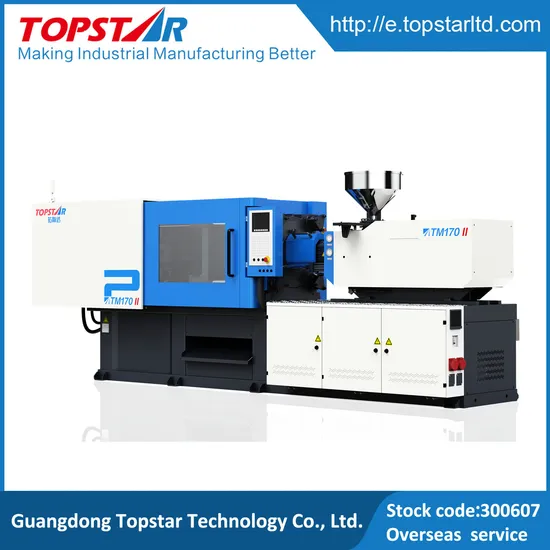

High Performance TM170II Injection Molding/Moulding Machine for Phone Case

Product Description

Topstar 90-470Ton Horizontal Injection Molding Machine for Households Plastic Products

Product Description:
The TM II series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Strong engine, efficiency increase.
2. Configuration promoted, stable to use.
3. Optimized design, energy saving and reliable.
4. Highly integrated, accurate and efficient.
Accessory Introduction:
1. Standard KEBA controller, PHASE motor, DELTA drive, with self-developed control program, more precise production control.
2. Standard configuration of plating screw and temperature control of the offload, higher production efficiency, and wider application range of rubber materials.
3. Optimized clamping design, higher strength and more stable.
4. Diagonal double carriage cylinders and linear guide, more accurate and stable injection.
5. Pre-plasticizing adopts proportional back pressure control, easy to operate. Multi-stage back pressure setting can be realized, with higher precision and improved plasticization quality.
6. Precision PVD alloy screw head set, adapt to a wider range of plasticizing requirements.
Parameter Table:

INJECTION UNIT	UNITS	TM170II
Screw Diamete	mm	40	45	50
Screw L/D Ratio	L/D	22.5	20.0	18.0
Screw Stroke	mm	200	200	200
Shot Volume	cm3	251	318	393
Shot Weight(ps)	g	229	289	357
	oz	8.1	10.2	12.6
Injection Pressure	kgf/cm3	2362	1866	1511
Injection Rate	cm3/s	151	191	236
Injection Rate	mm/s	120	120	120
Screw Speed	rpm	230
Nozzle Contact Force	t	6.2
Nozzle Stroke	mm	280
CLAMPING UNIT	UNITS	TM170II
Clamping Force	t	170
Opening Stroke	mm	430
Platen size(H×V)	mm	680*680
Space Between Tie Bars(H×V)	mm	470*470
Mlould Thickness (Min)	mm	160
Mlould Thickness (Max)	mm	540
Max. Daylight	mm	970
Ejector Force	t	5.5
Ejector Stroke	mm	140
Locating Ring	mm	125
POWER/HEATING UNIT	UNITS	TM170II
System Pressure	kgf/cm3	175
Pump Power	kw	22
Heating Power	kw	10.2
Number of Temp Control Zones	-	3+1
OTHERS	UNITS	TM170II
Machine Dimensions(LxWxH)	m	5.3*1.32*1.96
Oil Tank Capacity	L	200
Machine Weight	t	4.5
Platen Dimensions
Platen Dimensions

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.

---
