Rubber Cutting Manufacturers/Cut Raw Rubber Material/Hydraulic Guillotine Rubber Bale Cutter

Product Description

Rubber Cutting Manufacturers/cut raw rubber material/Hydraulic Guillotine Rubber Bale cutter

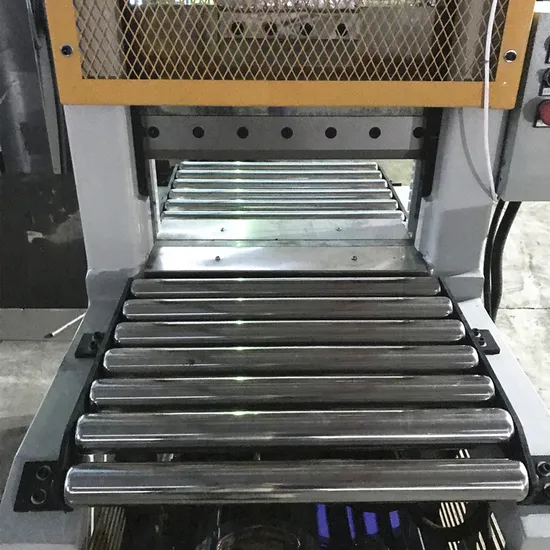

1.This machine is mainly used for cutting the natural rubber,synthetic rubber or other plastics materials into pieces.
2.The machine is a frame structure, and the cutter is directly mounted on the piston rod of the upper cylinder, and has a simple structure and is easy to operate.
3. Using high hardness and high precision circular knife cutting, pneumatic feed, pneumatic the tailstock (the tailstock has owe pressure protection device);
4.Cutting spindle replaceable steering, satisfy customer's different way to cut,
5.According to the customer's need to increase the feeding diameter to ø 300mm, at circular knife parts increase drive motor and reducer, knife seat installs the precision linear guide bearing, make cutting more stable, cutting out of finished edge is more beautiful, especially suitable for cutting large diameter of bubble surface materials;
6.Can increase the sword type flat knife slitting structure (manual cutting machine slitting functions), can be manual pushing flat blade for cutting, more convenient, meanwhile slitting flat end face, Cutting spindle domains on PE hose protect knife, prevent blade bruising,Operation is very simple,
7.Slitting length by hexagon positioning shaft decision, can set up six basic slitting width,also in six basic width of cutting, multiple cutting width accurate location

Type	XQL-80	XQL-120	XQL-125
Wid of the knife(mm)	600	760	760
Knife stroke(mm)	680	680	680
Cylinder total pressure(kN)	80	120	125
Stroke time(s)	14-16	13-16	13-16
Motor power(kw)	5.5	11	14
Dimension(mm)	2122*1440*2509	1950*1400*2338	2300*1500*2530
Weight(kg)	1600	2000	2600

---
