Full Automatic T-Shirt Bag Making Machine (Double-layer Four-lines)

Product Description

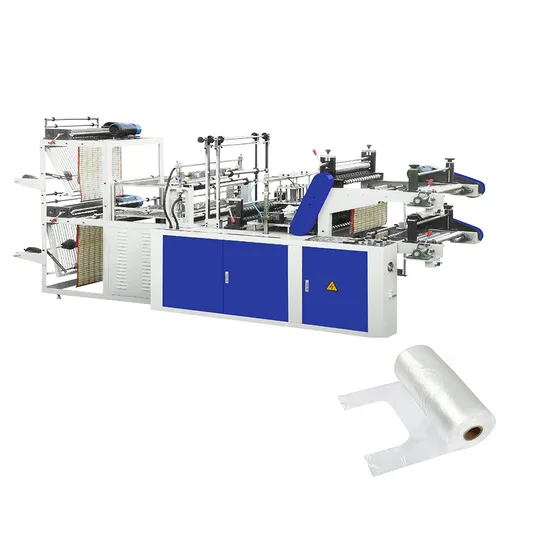

T-Shirt Bag Making Machine
USE:
It is a fully automatic T-shirt bag(vest bag) making machine. Can make the T-shirt bag at one time from the four line raw material.
FEATURE:
The machine is high speed, fully automatic, stable in performance. It can automatically feed four lines plastic film, heat sealing, cold cutting and punch vest shape. It has magic eyes tracking system for print bags and auto counting, when reach preset number the machine will alarm and stop.
Technical Parameters are subject to change without prior notice
picture one: two layer , four lines production
picture two : two line production

Main technical parameters:
Model	DFQ-800*4	DFQ-900*4
Max bag width( blank)	370mm *4	420mm *4
Max bag width( color)	370mm	420mm
Bag length	350-700mm	350-700mm
Error of length	±0.5mm	±0.5mm
Film thickness	0.05-0.10mm	0.05-0.10mm
Max speed	120pcs/min X4	120pcs/min X4
Gross power	380V 15KW	380V 15KW
External dimension	6000X1400X1850mm	6000X1500X1850mm
Weight	1500KG	1700KG

Company Profile
The company is located on Ruian city belonged to South Zhejiang, which has convenient traffic and long history of machinery manufacture. We have our own factory RUIAN RUIFENG PACKING MACHINE Co., Ltd since 1996, As a professional manufacturer of plastic bag making machines, we can supply various plastic bag making machine such as flat bag making machine, vest bag making machine, three sealed zipper bag making machine, bubble film bag making machine, etc. And we also supply the film blowing machine, film laminating machine, printing machine and other relative plastic machine. Since the foundation, the company has taken up with the ideal of "quality first, seeking for outstanding ", emphasized on internal management and after-sales service, paid attention to technology improvement and information, persisted in the teamwork between manufacturer and traders so as to base itself upon marketing, taken part in competitive strategy and policy to obtain development for itself. Facing up with furious competition, the company will stick to the tenet of "emphasize on quality, abide by credit", and will offer clients with perfect after-sales service. We sincerely welcome friends from home and abroad to hold trades with us, and to achieve success together.

---
