Hualong Laser Stone Machinery Infrared Bridge Stone Slab Edge Cutting Machine for Counter Top Floor Tile Machine 20cm Block Cutting Machine

Product Description

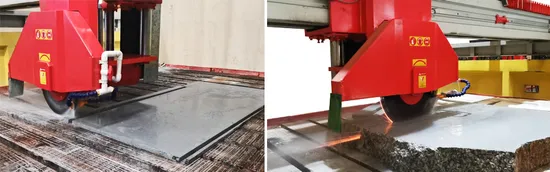

Infrared Automatic Bridge Stone Cutting Machine HLSQ-700 is mainly used for granite, marble cutting, with many advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products, the advantages are obvious. It is a very important and common equipment in stone processing equipment.
Parameter:

Configuration	Diameter of saw blade	mm	Φ400 - Φ700
	Dimension of working platform	mm	3200 x 3200 x 220
	Power of main motor	kw	18.5
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Water consumption	m3/h	4
Measurement	Gross weight	kg	6100
	Dimension (L x W x H)	cm	6000*5000*2800

Main Features:
* Controlled by PLC, operated expediently, accurately and stably.
* Cutting head can tilt 45° for mitre cuts(Optional function).
* Working table can tilt at 85° for easy loading slabs and rotates 360° for ideal cutting. A full 360° rotating table enables precision cutting of material edges.
* Laser device is adopted for slab positioning accurately.
Advantages:
* Durability: Good quality steel is used as the mechanical parts and reliable electric parts are used to guarantee hgh reliability&durability.
* Precision:
a. Crossbeam movement(Y-axis) along V-guide way with high precision.
b. Magnetic ruler is adopted for slicing measure.
c. Laser device for accurate alignment.
d. V duide tail system applies not only in left and right movement of the grinder but also in lifting up and down section, thus reduces the error and improves cutting accuracy.
* User-friendly
a. Touch screen control panel and all movement is controlled by PLC to realized operation available.
b. Work table can be tiltable and removable.

---
