1lyq-522 25-30HP Tractor Mounted Rotary Driven Disc Plough Disc Plow Cultivator

Product Description

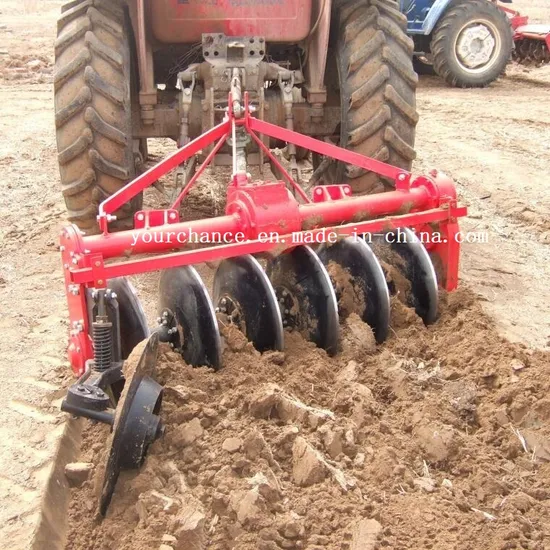

1LYQ-522 25-30HP tractor mounted Rotary driven Disc plough disc plow cultivator
1LYQ series Disc Plough, also named Rotary-driven Disc plough, Drive plough,One-way Disc plough, Heavy duty plough, Plow,
Farm plough, Agriculture Plough, Tractor Plough
Main Features:
1LYQ driven disc plow is mounted on a tractor through a rear mounted three-point linkage. During the working process of the implement,
the motive power is transferred to the gear case of the disc plow through a back power takeoff shaft (PTO) of the tractor to drive the discs
of the disc plow to rotate. The driven disc plow, which is mainly suitable for paddy field plowing, has the advantages of no weed winding,
high operational quality and high working efficiency.
Main Specification and Technical parameters :

Model		1LYQ-322	1LYQ-422	1LYQ -522	1LYQ-622	1LYQ -722	1LYQ-822	1LYQ-922
Overall dimension (mm)	L	855	965	1075	1210	1325	1440	1555
	W	1145	1365	1585	1805	2025	2245	2465
	H	1050	1050	1050	1050	1050	1050	1050
Working width (mm)		660	880	1100	1320	1540	1760	1980
Disc diameter (mm)		500	500	500	560	560	560	560
Disc thickness (mm)		4	4	4	4	4	4	4
Disc no.		3	4	5	6	7	8	9
Working depth (mm)		120~240
Input shaft rotating speed (rpm)		540~720
Cutter shaft rotating speed (rpm)		90~120
Matched power (hp)		12-20	18~28	25~30	30~50	50~60	60~70	70-90
Weight (kg)		216	240	276	321	357	400	430
Linkage		Standard Three-point Suspension

1LYQ series Disc Plough main Features and Specification :
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
Disc Plough by Iron crate box Packing :
Best price will be quoted for you as soon as receive your Requirement !

---
