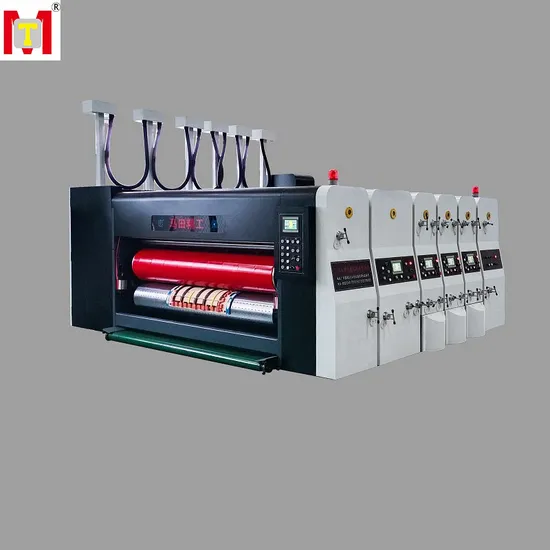

Ptr-6 Fully Automatic Corrugated Cartons/Cardboard Printing Die Cutting Machine

Product Description

Guangzhou Matian Machinery Co., LTD is a professional manufacturing of equipment and service for corrugated cartons making machines industries. We are dedicated to the design, research and development, production, sales and service of corrugated carton flexo printing and converting machinery. The company adheres to the international first-class European and American technology, positioning in high-end products. Our main product series include: Full Automatic Flexo Printer Slotter Die-Cutter Folder Gluer/Stitcher Inline, Automatic High definition Printer Slotter Die Cutter(Servo drive), Automatic Printer Slotter Die Cutter(Gear drive), and other converting equipment. Professional focus is the guarantee of quality products of Matian company. Product Description PTR-6 Automatic Flexo Printer Slotter Die Cutter
(Guide Roller Transfer)
Technical Specifications

Item / Model		PTR0920	PTR0924	PTR 1224	PTR 1228	PTR 1628	PTR 1632	PTR 1636
Max. machine speed (pcs/min)		280	240	240	220	200	180	160
Max. feeding size(mm)		900×2100	900×2500	1200×2500	1200×2900	1600×2900	1600×3300	1600×3700
Min.feeding size(mm)		250×650	250×650	350×650	350×650	450×650	450×650	450×650
Skip feeding size(mm)		1100×2100	1100×2500	1500×2500	1500×2900	1800×2900	1800×3300	1800×3700
Max.printing size(mm)		900×2000	900×2400	1200×2400	1200×2800	1600×2800	1600×3200	1600×3600
Min.slotting space(mm)	Normal knife	130×130×130×130	130×130×130×130	130×130×130×130	130×130×130×130	135×135×135×135	135×135×135×135	135×135×135×135
	Reverse knife	230×80×230×80	230×80×230×80	240×80×240×80	240×80×240×80	260×85×260×85	260×85×260×85	260×85×260×85
Min.slotting length(mm)		200	200	370	370	490	490	490
Printing plate thickness		7.2	7.2	7.2	7.2	7.2	7.2	7.2

Main features
Mechanical lead edge feeding, variable frequency control of air volume according to cardboard warp, ensures smooth paper feeding.
Double-row feeding roller, upper rubber roller with anti-pressure groove design to reduce pressure on the board.
Dust removing device with brushes and air suction, removes the dust on the printing surface of carton to improve printing quality. Sectional adjustment of Suction outlet according to board size.
Metal Anilox roller or Ceramic Anilox roller are optional, printing line numbers are on request of customers.
High-quality steel Transmission shaft, with hard chrome plating and surface grinding; High-quality Alloyed steel Transmission gear, with carburizing&quenching treatment and fine grinding, ensuring stable and accurate overprint. .
Automatic oil-balancing device, to keep oil level balance of each unit.
Main motor with safety protection device: Fail to start-up, if machine body not fixed.
Feeding Unit: Lead edge feeding
Die Cutting Unit: Imported rubber cushion

Double Vibration Waste Cleaning Unit:
High Speed Stacking Unit:
Company Profile Guangzhou Matian Machinery Co., LTD is a professional manufacturing of equipment and service for corrugated cartons making machines industries. We are dedicated to the design, research and development, production, sales and service of corrugated carton flexo printing and converting machinery. The company adheres to the international first-class European and American technology, positioning in high-end products. Our main product series include: Full Automatic Flexo Printer Slotter Die-Cutter Folder Gluer/Stitcher Inline, Automatic High definition Printer Slotter Die Cutter(Servo drive), Automatic Printer Slotter Die Cutter(Gear drive), and other converting equipment.Professional focus is the guarantee of quality products of Matian company. We provide not just high quality products and services, but the best solutions to help our customers
raise market competitiveness. We insist on continuous technological advancement, research&development. We aim to create more value for our customers and the society.
FAQ 1.Q: What is your machine warranty period?
A: We insist only produce high quality machine with best price. We never produce low quality machine with lowest price. So we trust our machine quality well, we promised all of the machines we produce the warranty period is 12 months. Because we believe our machine quality, so we dare to Extended warranties!
2. Q: We do not know how to operate machine, how to deal?
A. We can send our engineer to your site and do the training for your men. You just only bear the cost for our engineer's air ticket, accommodation, food and transposition in your country.
B. You can send your men to our factory. We will teach them how to operate the machine without training charges.
C. Actually there are another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manual first ,and get familiar with the machine. Then we can get a video call, and teach you on-line how to operate the machine.
3. Q: If the machine has some problems, during we using, how to deal?
A: 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
4.How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.

---
