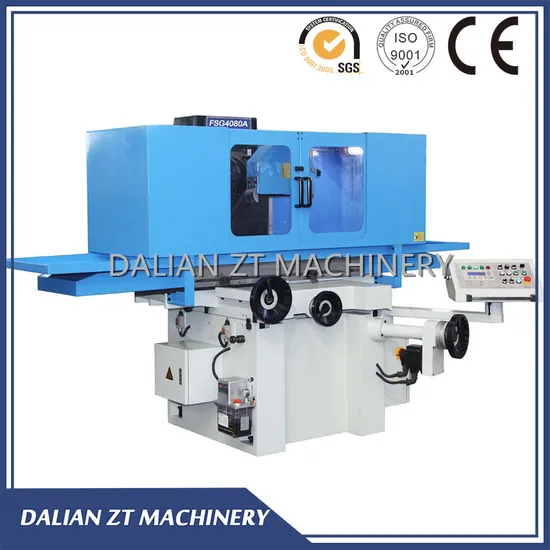

Taiwan Quality Precision Small Surface Grinding Machine SG4080R FSG4080AHD

Product Description

Features:
Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding.
Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series). CE standard electric requirements;
Independent hydraulic station;
Turcite coated guide way;

Item	SG-4080M	SG-4080R	SG-4080A
Table size	406*813mm	406*813mm	406*813mm
Magnetic chuck size	400*800mm	400*800mm	400*800mm
Max. Distance from spindle center to table	580mm	580mm	580mm
Table cross travel	450mm	450mm	450mm
Table longitudinal travel	910mm	910mm	910mm
Max. Loading capacity (including chuck)	500kg	500kg	500kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min
Cross motion
Intermittent feedrate	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid speed	990mm/min	990mm/min	990mm/min
Feed of handwheel	0.02mm/div	0.02mm/div	0.02mm/div
Vertical motion
Auto down feed rate			0.005-0.5mm/t
Rapid down speed		650mm/min	480mm/min
Feed of handwheel	0.005mm/div.	0.005mm/div.	0.005mm/div.
Spindle speed	1450(50Hz)/1750(60Hz)
Grinding wheel size	350*40*127mm
Spindle motor power	4kW
Floor space (L*W*H)	3600*2400*1900mm
Gross weight	3400kg
Packing size	2850*2270*2210mm

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
