Disposable Plastic Fruit Box Thermoforming Making Machine Plastic Cup Machine

Product Description

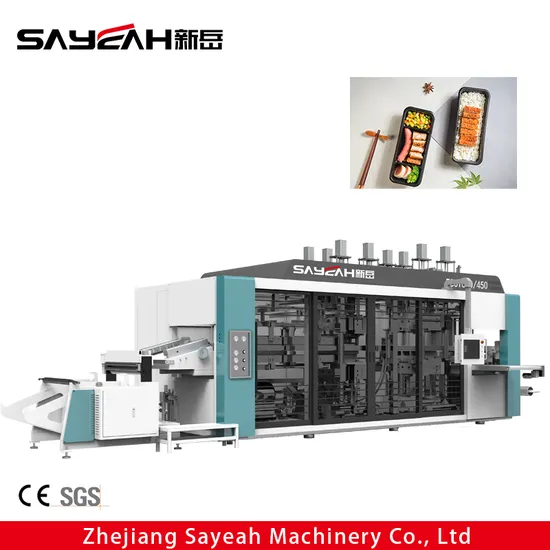

FSCT680/450 SERIES Disposable Plastic Fruit Box Thermoforming Making Machine plastic cup machine Product Description
The model of FSCT-680/450 thermoforming machine is our lastest developed products, it combines forming, punching, cutting and stacking in one process.This machine is specialized for forming PP, PS, HIPS, PVC, PET,OPS, EPS, C-PET, PLA, C-PLA, ABS or other materials sheet that can be widely used to produce all kinds of food and non-food packaging products like plastic trays, containers, boxes, lids and so on.
Features
1. European design, suitable for diversified production lines, Safe, efficient, energy-saving and hygienic
2. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
3. Operator-friendly HMI, and the system has the function of remote connection
4. Fast and accurate temperature control system (error ± 1 degree), with hot furnace detection material drop and air source low pressure protection system
5. Intelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown
6. It can share molds with models of most well-known brands at home and abroad, and cooperate with existing production lines
7. Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
Product Parameters

Model	FSCT680/450-4	FSCT680/450-4
Qty of Stations	3	4
Max.Forming Area	680x450mm	680x450mm
Max.Forming Depth	140/140mm	140/140mm
Max.Sheet Width	720mm	720mm
Max.Sheet Roll Dia	1100mm,1T	1100mm,1T
Sheet Thickness Range	0.15-2mm	0.15-2mm
Max.Dry Cycle Speed	55Cycles/min	55Cycles/min
Overall Power	120kw	130kw
Dimension(LxWxH)	9500x2900x2950mm	10500x2900x2950
Machine Weight	13T	17T

Main Electrical Components
Industrial control system	DELTA TAIWAN / Inovance Shenzheng
PLC	DELTA TAIWAN / Inovance Shenzheng
Touch screen interface	DELTA TAIWAN / Inovance Shenzheng
Feeding servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Stacking servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Forming servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Cutting servo-motor and drive	DELTA TAIWAN / Inovance Shenzheng
Vacuum pump	RUFUS,Jiangsu
Infrared ceramic heater	Tianbao, CHINA (3 years Warranty)
Solid state relay	SHANGHAI, AOYI
Pneumatic components	MAC,USA/SMC, Japan/ Germany

According customers' requirements, there also Lenze system for choosing Our Advantages
Certifications
Relate Products
FAQ
Q1: Are you a factory or trading company? A1: We are a factory, and we export our machines to more than 80 countries.Q2: How long is the warranty period?A2: 12months from the date of shipment from our factory. During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

---
