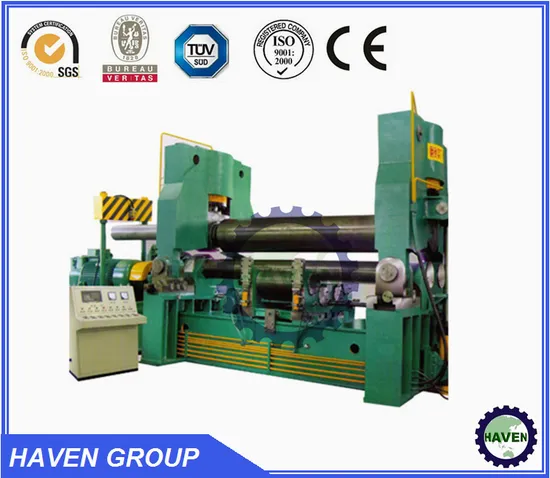

W11S-6X2500 Universal Top Roller Steel Plate Bending and Rolling Machine

Product Description

W11S-6X2500 Universal Top Roller Steel Plate Bending and Rolling Machine
1. Main functions:
1. Pre-bending is available means top-roller can be adjusted in directions upwards- downwards, right- left.
2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, W11S machine can produce cone type tube.
3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, workers are safe and easy to run the machine.
4. The shape of "O", "U", "R" or combined section shape is also available.
5. The machine is completed with economical PLC control function achieve high working efficiency.
6. PLC is from SIEMENS or OMRON;
7. Digital Screen is from DELTA, Taiwan;
8. Hydraulic valve and O-Seals are from UOSHEN brand, Taiwan
9. Motors are from SIEMENS brand
10. Main electric parts are from SIEMENS or SCHNEIDER
11. Gearbox is from China famous brand
12. Machine frame is welded with quality steel plate
13. Top roller is made with 42CrMo forded alloy steel
14. Bottom rollers are made with 45# forged alloy steel
15. To strong the bottom rollers, support rollers are adopted
2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments

Model	Max. thickness(mm)		Width	Workpiece min dia	Top roller	Bottom roller	Distance bottom roller	Motor (KW)
	normal	Pre	(mm)	mm	(mm)	(mm)	(mm)	Main	Hydraulic	Movement
W11S-6x2000	6	4	2000	480	195	125	160	3	1.5	0.75
W11S-6x2500	6	4	2500	580	235	135	180	4	2.2	0.75
W11S-8x2000	8	6	2000	550	220	125	180	4	2.2	0.75
W11S-10x2000	10	8	2000	630	250	145	200	5.5	4	1.1
W11S-10x3200	10	8	3200	630	280	180	250	7.5	4	1.1
W11S-10x4000	10	8	4000	800	360	200	330	18.5	7.5	4
W11S-12x2500	12	9	2500	660	265	145	200	5.5	5.5	1.5
W11S-12x4000	12	9	4000	850	380	220	360	22	7.5	5.5
W11S-16x2000	16	12	2000	700	300	150	245	11	7.5	4
W11S-16x2500	16	12	2500	750	330	165	270	11	7.5	4
W11S-16x3200	16	12	3200	800	360	180	330	22	7.5	4
W11S-16x4000	16	12	4000	1200	490	250	400	37	11	7.5
W11S-20x2000	20	16	2000	780	340	180	330	22	7.5	4
W11S-20x2500	20	16	2500	800	360	180	330	22	7.5	4
W11S-20x3200	20	16	3200	850	380	220	360	30	11	5.5
W11S-25x2000	25	20	2000	800	360	220	360	30	11	5.5
W11S-25x2500	25	20	2500	850	380	240	360	30	11	5.5
W11S-25x3200	25	20	3200	1000	410	260	380	37	11	7.5
W11S-25x4000	25	20	4000	1200	490	250	400	37	11	7.5
W11S-30x2500	30	24	2500	1000	410	260	380	37	11	7.5
W11S-30x3200	30	24	3200	1100	440	260	400	37	11	7.5
W11S-35x2000	35	28	2000	1100	440	260	400	37	15	7.5
W11S-35x2500	35	28	2500	1150	460	275	420	37	15	11
W11S-35x3200	35	28	3200	1400	560	290	500	55	22	11
W11S-40x2500	40	32	2500	1250	500	290	460	55	18.5	11
W11S-40x3200	40	32	3200	1400	570	340	500	75	22	11
W11S-40x3200	40	32	3200	1480	590	340	610	55	22	11
W11S-40x5000	40	32	5000	1750	700	360	650	75	30	15
W11S-50x5000	50	40	5000	1980	790	420	780	90	37	15
W11S-60x3200	60	48	3200	1600	650	380	700	75	30	15
W11S-70x3200	70	56	3200	1750	710	420	780	75	37	15
W11S-80x3200	80	64	3200	1900	770	460	880	90	37	18.5

.

---
