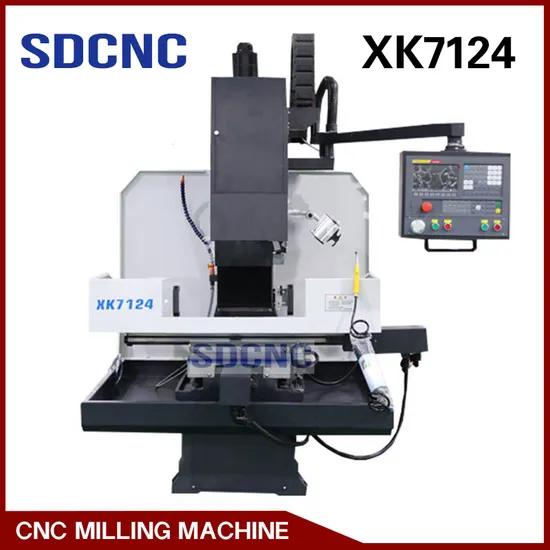

China Wholesale Price Xk7124 High Quality CNC Milling Machines

Product Description

Product Description

Product Parameters

Specification		XK7124B
Worktable size length(mm)×width(mm)		1000×240
T-slot quantity-width(mm)		5-14-44
The max loading weight(kg)		200
X axis stroke(mm)		500
Y axis stroke(mm)		350
Z axis stroke(mm)		450
The distance from end face to worktable surface (mm)		80-530
Teh distance from spindle ctnter to column surface(mm)		310
Spindle tapper		BT40
Spindle speed (Rpm)		6000
Main motor power (kW)		3.7K(servo)
Feeding motor	X axis torque(N.M)	6(servo)
	Y axis torque(N.M)	6(servo)
	Z axis torque(N.M)	10(brake automatically)
Quickly moving speed(m/min.)		4000
Cutting feed speed(mm/min)		1-4000
Screw specification(diameter mm/screw pitch mm)		32/6
Accuracy	Position accuracy (mm)	0.01
	Repeat position accuracy(mm)	0.008
Machine weight kg		1500kg

The machine standard accessories :

Item	Name	Specification	quantity
Standard accessories	Collect chuck shank	BT30	1PCS
	Milling chuck		1SET(8 pcs)
	Rivet		1PCS
	Hook spanner		1pcs
	Inner hexagonal spanner		1set

Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.

---
