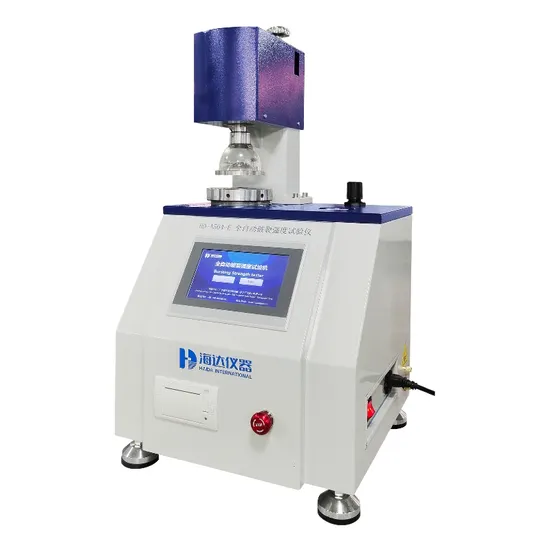

PLC Control Bursting Strength Test Machine

Product Description

Electronic Mullen Brust Strength Test Equipment for Paperboard
Product introduction:
Mullen Brust Strength Test Equipment is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; It can also test cloth and synthetic leather. The bursting strength Test Equipment is adapted with signal output of pressure. While specimen is breaking, the max. Breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
General maintenance:
Clean: Maintain the machine cleanliness at any time, wipe the machine with cotton to keep it clean before and after each use.
Antirust: Spraying the rust oil on the surface of metal part of the machine weekly (2 hours after injection wipe)
Lubricating oil: Endorsement lubrication oil on transmission components in machines (such as Screw) monthly ( use an ordinary oil can).
Check the gear reducer oil should fill or replaced each half year.
Glycerol should be completely replaced every half year.
STANDARD FEATURES

Capacity (Optional)	High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
Unit (switchable)	Kpa, psi, kg/cm^2
Accuracy	± 0.5%
Pressure Range	250~5600kpa
Speed of Compression	High Pressure 170± 10ml/min
Specimen Clamping Force	>690kpa
Oil	Silicon oil
Sensing method	Pressure Transmitter
Indicating Method & Display	LCD
Material of the Ring	Stainless Steel SUS304
Opening in Upper Clamp	31.5 ± 0.05 mm Diameter
Opening in Lower Clamp	31.5 ± 0.05 mm Diameter
Motor	Anti-vibration Motor 1/8 HP
Operation Method	Automatic
Dimension (L×W×H)	445×425×525 mm
Weight	Approx. 70 kg
Power	AC220± 10%, 50 Hz
Power Capacity	120W
Standard Configuration	Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
Optional Configuration	Printer, Air Pump

Design standard:
JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539
Images:
The Introduction of HAIDA
HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Customer Feedback:
FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.

---
