Automatic Concrete Brick Machine Making Plant Full

Product Description

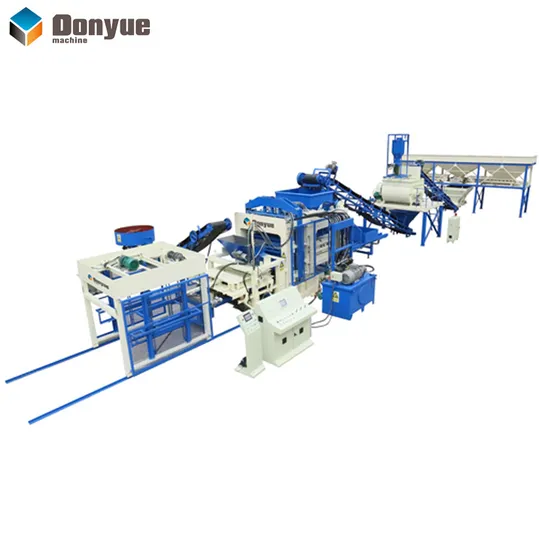

QT18-15 brick machine making automatic
Product Description
1. Automatic Brick Making Machinery can produce various solid blocks , hollow blocks, pavers and curbstones by changing moulds.
2. Automatic Brick Making Machinery adopt hydraulic pressure moulding system, so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. Precise line cutting technology and carburizing treatment technology to prolong mould life and increase precision of the block.
4. Switches will use Japan Omron or France Schneider band, motor will use Siemens or ABB brand.

Product Parameters
The main technical parameter is as following data, details information can be provided.

Dimension of host machine	14000X2350X3800mm	Host machine power	116 kw
Weight of host machine	20 Ton	Vibration force	200-220KN
Pallet size	1400×1350×32mm	Moulding area	1350×1300mm
Workshop area	500 m2	Water consumption	20-25 Ton/day
Voltage	according to local	Mixer model	JS1500/CMP1500

Theoretical production capacity of QT18-15 fully automatic block making machine line:

Size (LxWxH) (mm)	pcs/mould	pcs/hour	pcs/8 hours
400x200x200	18	3240-4320	25920-34560
240x115x90	50	9000-12000	72000-96000
240x115x53	100	18000-24000	144000-192000
225x112.5x60	50	9000-12000	72000-96000

The production capacity is according to the block size, we can give the reference data accordingly.
Details Instruction
Customers Feedback
Company Profile
Dongyue Machinery Group, which was organized in 2012, includes 7 subsidiaries, With registered asset of 174 million RMB, total asset of 724 million RMB, total area of 400,000 square meters, and over 1500 staff, the Group is a national large-scale designated building materials machinery manufacturer.
Pre-Sales
1.Perfect 7*24 hours inquiry and professional consulting services.
2.Visit our factory anytime.
Sale
1.Update the production schedule in time.
2.Quality supervision.
3.Production acceptance.
4.Shipping on time.
After-Sales
1.Warranty period :1 YEAR after acceptance, during this period we will offer free spare parts if they are broken.
2.Training how to install and use machine.
3.Engineers available to service overseas.
4.Skill support the whole using life.

---
