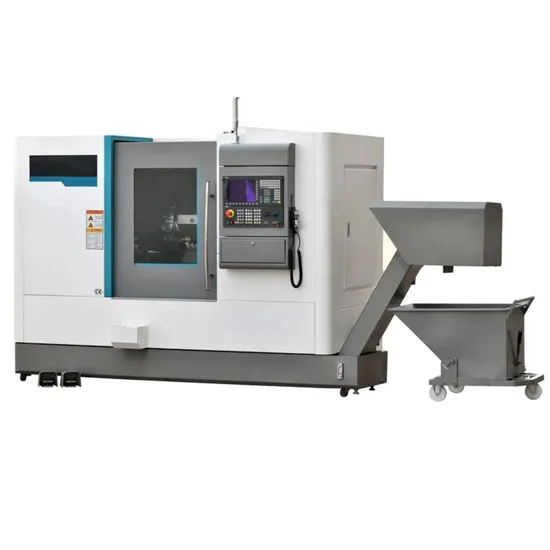

Advanced Automatic Vertical Flat Bed CNC Lathe Machine for Precision Metalwork

Product Description

Products Description
Features
1. Our casting workshop adopts lost foam to guarantee the size and precision of casting parts. 2. All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses. 3. All the guide surface are performed quenching, hardness is HRC45-52 degrees.

Standard configuration	Optional configuration
GSL980TB3 or GSK980TDC control system ,	Siemens ,Fanuc ,SYNTEC and other control system
Eletric 4 position tool post	3-jaw manual chuck
3-jaw manual chuck,	Spindle hole 80mm
Spindle hole 52,	Hydraulic chuck,
Manual tailstock	6/8 electric turret ,
Low-high two steps spindle speed	Hydraulic tailstock,
	Indepedent spindle
	Automatic chip conveyor

PRECISION CHUCK Standard with Manual chuck, Optional:hydraulic chuck or pneumatic chuck.


CNC CONTROL SYSTEM Standard :GSK Optional :Siemens, Fanuc,Syntec, Mitsubishi and others.



TOOL POST/ TURRE T Standard with 4 staion electric tool post ,6/8 station electric turret are optional.
Specifcation

SPECIFICATIONS	Units	CK6150
Swing over bed	mm	500
Swing over cross slide	mm	260
Distance between centers	mm	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)
Spindle bore taper	-	MT6
Spindle nose type	-	C6
Spindle speed steps	-	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post	-	Electric 4 position
Tool size	mm	25 x 25
X axis travel	mm	280
Z axis travel	mm	750/1000/1500/2000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	8000
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	130
Main spindle motor	kw	5.5
Coolant pump motor	kw	0.09
Weight for 750	kg	1800
Weight for 1000	kg	1900
Weight for 1500	kg	2000
Weight for 2000	kg	2100
Dimension for 750	mm	2200x1700x1750
Dimension for 1000	mm	2500x1700x1750
Dimension for 1500	mm	3000x1700x1750
Dimension for 2000	mm	3500x1700x1750

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.

---
