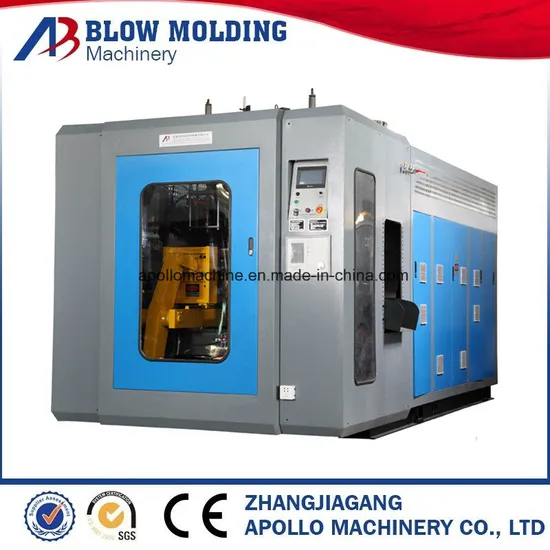

Extrusion Blow Molding Machine/ Plastic Making Machine/Blow Molding Machine

Product Description

Company Profile

Plastic Blow Molding Machine/plastic making machine/extrusion blow moulding machine/plastic jerry cans/drums /bottles blow moulding macine
ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station three die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC. Product Parameters

Max. Product volume	5 liters
Out put capacities	150~180pc/h
Screw diameter	65mm
Screw L/D ratio	24 L/D
Screw drive power	18.5 KW
Screw heating capacity	6 KW
No.of heating zone	3 zones
Output of HDPE	80KG/H
Oil pump drive power	7.5 KW
Clamping force	65KN
Max.size of mold	148-568mm
Mold stroke	330 X 370mm
Max.die diameter	160mm
Blowing pressure	0.6 mpa
Air Volume	0.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	50 L/MIN
Size of Machine	3.1x1.5x2.7m
Weight of machine	5.5 ton

Detailed Photos
After Sales Service

---
