Capacity Gmc3018 Big Size 5 Axis Gantry CNC Machining Center

Product Description

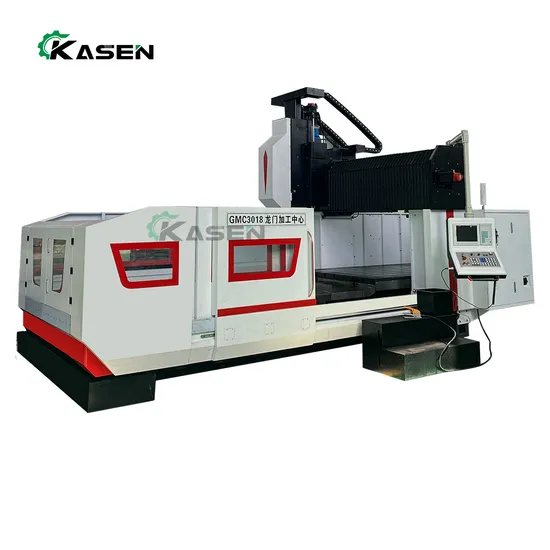

Max. Loading Capacity 6.5T GMC3018 Big Size 5 Axis Gantry Cnc Machining Center
Product Description
Feature:This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the roughmachining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety ofprocessStandard Accessories: Optional Accessories:Armless type tool magazine System:FANUC,Siemens,GSK etc.Automatic lubrication system Arm type ATCCooling system 4axis or 5axisHeat Exchanger Automatic chip conveyorPneumatic system Spindle center coolantFull Cover machine enclosure Higher speed of SpindleAir system/ Air gun Air conditioner Product Parameters

Specifications	GMC3018
X axis travel	3000mm
Y axis travel	1800mm
Z axis travel	800mm
Distance between spindle nose and worktable surface	140-940mm
Distance from spindle axis to column surface	450mm
Distance between two columns	1800mm
Distance between worktable and beam	1200mm
X rapid traverse speed	10m/min
Y rapid traverse speed	12m/min
Z rapid traverse speed	12m/min
Cutting feed speed	1-10m/min
Three-axis servo motor torque	X/Y/Z:30/30/30N.m
Table size	3000×1600mm
Max. worktable load	3000Kg
Distance from table to floor	Approx 950mm
T slot(number-width-pitch)	5×22-150mm
Connection Type	belt
Max. spindle speed	6000 rpm
Spindle taper	BT50
Main motor power	15KW
Positioning accuracy(JIS standard)	±0.005/300mm
Repeat positioning accuracy(JIS standard)	±0.003mm
Machine weight	Approx 26000Kg
Overall dimension	Approx 6500×3000×3400mm

Company Profile

After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
