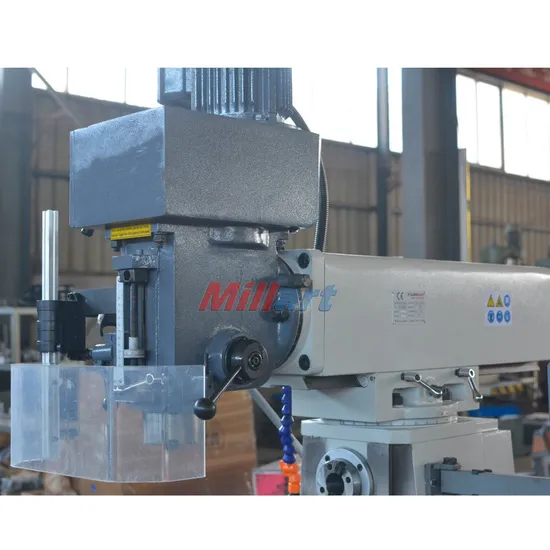

Zx7550z High Presion Universal Vertical Milling Machine, Vertical Drilling and Milling Machine

Product Description

Product Description
Feature:
Milling head with auto feeding
Use as milling machines and drill press
Easily shift able gear drive ensures power transmission without losses
With gear spindle drive
Head swivels into the horizontal level on both sided
Easy activation of manual micro-feed for the spindle quill
Specification:

Model	ZX7550Z
Table size (mm)	1000×240
Table travel (mm)	600×210x300
Max.drilling dia (mm)	50
Max.horizontal milling dia (mm)	100
Max.vertical milling dia (mm)	25
Max.boring dia (mm)	120
Max.tapping dia	M16
Spindle feeding rate (mm)	0.08/0.15/0.25
Distance.spindle to table surface (mm)	50-350
Spindle speeds range (r.p.m)	8 steps 60-1500 (V) 9 steps 60-1350(H)
Spindle travel	120
Spindle taper	MT4/ISO40
Overall dimensions (mm)	1280×1100×2080
Motor (Kw)	0.85/1.5(V) 1.5(H)
N.W/G.W (Kg)	900/1000

Standard accessories:

Drill chuck

Reduction sleeve

Draw bar

X axis auto power feed

Mill arbors

Collet chuck kits

Coolant system

Chip tray

Work lamp

Tools and box

Optional accessories:

Y axis power feed motor

Z axis power feed motor

3 axis DRO

Air draw bar

Separately control panel box

58 pcs Clamping kits

Spindle protection

Worktable protection

Worktable swivel ±45 degree

Rotary table HV10

Dividing head BS-0

Machine vice 160mm

Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
