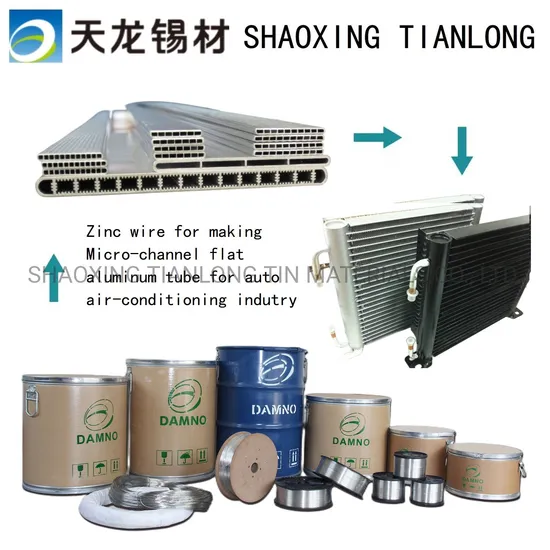

Zinc wire for Micro-channel flat aluminum tube for auto air-conditioning industry Sample Customization

Product Description

Zinc wire is a good anti-corrosion material, widely used in steel structures anti-corrosion, wind power towers, bridges, sluice gates, oil pipes on the sea, Ductile iron pipes, and extrusion division tubes for the Auto Air-conditioning industry.

High-purity Zinc wire is the best film capacitor metal spraying material, The zinc purity is more than99. 995%.And the impurity content is less than 0.005%.
The surface of the zinc wire is smooth and bright, with no broken wires, no greasy dirt and burrs, no scratches and scars, and no jam in the process of use.
The zinc wire with high purity99.995% conforms to the requirements of EU ROHS, REACH, and relevant domestic laws and regulations for environmental protection.
Product code:BMPTZS
Chemical composition:

ITEM	Zn % ≥	Impurity %≤
		Pb	Fe	Cd	Cu	Sn	Al	TTL
BMPTZS	99.995	0.004	0.003	0.002	0.001	0.001	0.001	0.005

Mechanical characteristics:

ITEM	BMPTZS
SPECIFIC GRAVITY (g/cm3)	7.13±0.1
MELTING RANGE ºC	419.5ºC±1ºC
ELECTRICAL RESISTIVITY (mΩ.mm2 /m)20ºC	≤70
TENSILE STRENGTH (Rm N/mm2)	95-130
ELONGATION AFTER RUPTURE (A 100mm %)	≥30

Diameter: 0.6mm≤Ф≤4.80mm
Product packing:

Hard paper drum	150-250 kg	outer diameter 550 mm, inner diameter300mm, variable height
Hard paper drum	40-110 kg	outer diameter 400 mm, inner diameter190mm. variable height
Plastic spool	15 kg	flange300mm, width100mm, center hole:55mm
Plastic spool	20 kg	flange270mm, width103mm, center hole:55mm
Steel drum	380 kg	outer diameter 560 mm, inner diameter310mm, height 800mm
bundle	20-40 kg

The pallet will be used, such as 1100mmX1100mm, 1200mmX800mm, 1000mmX1000mm, 800mmX800mm. Various products of Zinc Wire, providing product images and basic parameters with each Zinc Wire and High Pure Zinc Wire; We are a professional Chinese manufacturer of Zinc Wire, and look forward to your cooperation!

---
