Hualong Hlsq-650 Full Automatic 45 Degree Tilting Bridge Stone Cutting Machine

Product Description

Product Details

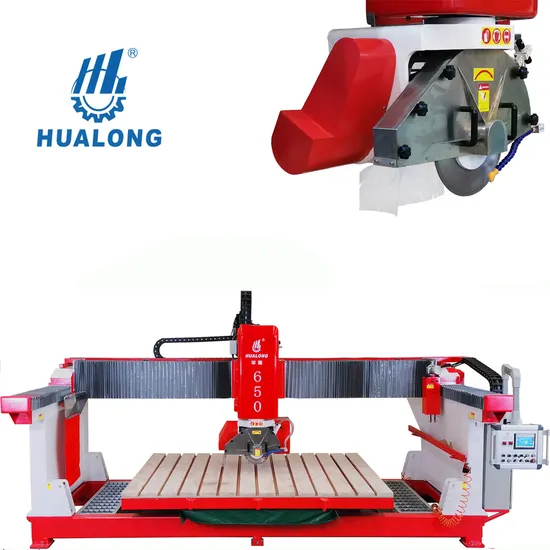

HLSQ-650 automatic bridge stone cutting machine, a product of Fujian Province Hualong Machinery Co., LTD, is a practical and efficient numerical controlled stone processing machine. The working platform can tilt from 0° to 85° for easy feeding of slabs, and can rotate from 0°to 360°, available positioning at any angle, so as to meet the needs of various angles' cutting.

Main Features

1)The machine adopts Siemens control system, Schneider electric, Hiwin linear guide and other international brands of high quality accessories.2) This machine can process large thin slab and thick slab with thickness up to 20cm.3) Its maximum working stroke of X-axis is at 330cm, Y-axis at 200cm, Z-axis at 30cm.4) Swing the joystick, which can flexibly control the movement, start and stop of X, Y and Z axis.

TECHNICAL DATA HLSQ-650
Configuration	Diameter of saw blade	mm	Φ400 - Φ650
	Dimension of working platform	mm	3300 x 2000
	Power of main motor	kw	15
	Power of tool slide reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	1.5
	Gross power	kw	21.3
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	200
	Max. lifting travel of cutter	mm	300
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5800
	Dimension (L x W x H)	cm	5750x3600x3400

SIEMENS PLC control system supports multi-language operation, such as Chinese, English, Spanish, Portuguese, Turkish, Russian, etc.
Electric and electronic components in international standards is to be easily sourced, such as adopting Siemens brand.
X, Y, Z axis adopts Taiwin Hiwin linear guide for moving to guarantee high cutting accuracy and moving stability.
Encoders in X, Y, Z axis guarantee precise positioning.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
