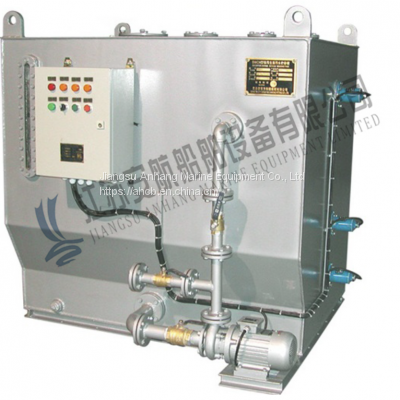

| Product No. | SWCH Series Marine Sewage Comminuting and Disinfecting Holding Tank | ||||||||||||
| Model | SWCH- | ||||||||||||
| 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | |
| Capacity(m³) | 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 |
| Quality of Effluent | Colichin NOT MORE THAN 1000pcs/100ml,suspended solid shall not be found | ||||||||||||
| Electricity | 380V,50HZ,3 phase | ||||||||||||
| Power | 1.0kw | 1.5kw | |||||||||||
| Discharge pressure | 0.08MPa or as order | 0.1MPa or as order | |||||||||||
| External dimensions L*B*H(mm) | 900 * 650 * 1350 | 900 * 800 * 1500 | 1200 * 950 * 1500 | 1300 * 1100 * 1500 | 1400 * 1300 * 1500 | 1800 * 1500 * 1500 | 1800 * 1500 * 2000 | 2000 * 1600 * 2000 | 2500 * 1650 * 2000 | 2800 * 1850 * 2000 | 2800 * 2050 * 2300 | 2850 * 2250 * 2300 | 3250 * 2450 * 2300 |
| Dry weight(kg) | 380 | 450 | 560 | 650 | 730 | 950 | 1200 | 1600 | 2000 | 2500 | 3000 | 3200 | 3600 |
| Wet weight(kg) | 680 | 950 | 1560 | 2150 | 2730 | 3950 | 5200 | 6600 | 8000 | 10500 | 13000 | 15200 | 18600 |
