Top quality waste paper and cardboard compress baler machine
Product Description
Brief Introduction of hydraulic baler
This series of products are widely used in packaging materials such as cotton, hemp, waste paper cartons, beverage cans, industrial scraps, and waste products, saving up to 80% of the stacking space, and reducing transportation costs.
Feature of hydraulic baler
1)Wide range of applications, textiles, plastic products, metal products, etc. can be compressed and packaged
2)Simple operation, after the material is put into the machine, only need to open the switch to compress
3)The finished product is firm and the material can be fully compressed under constant pressure
Parameter of hydraulic baler
Type 1:Vertical hydraulic baler
Model
| Pressure
| Motor
| Volume of inner box
| Final product size
| Capacity
| Weight
|
SL-15T
| 15T
| 5.5KW
| 850*600*1300MM
| 890*610*500MM
| 1-1.5T/H
| 1T
|
SL-30T
| 30T
| 7.5KW
| 800*400*1300MM
| 890*610*500MM
| 1.5-2T/H
| 1.5T
|
SL-60T
| 60T
| 7.5KW
| 900*600*1300MM
| 900*610*500MM
| 2-2.5T/H
| 2T
|
SL-80T
| 80T
| 7.5KW
| 1200*800*1500MM
| 1200*810*500MM
| 3-3.5T/H
| 3T
|
SL-100T
| 100T
| 15KW
| 1100*900*1500MM
| 1100*910*500MM
| 3.5-4T/H
| 3.5T
|
SL-120T
| 120T
| 18.5KW
| 1200*100*1500MM
| 1200*100*500MM
| 4-5T/H
| 4T
|
Type 2:Horizon hydraulic baler
| | SL-HZ-120
| SL-HZ-160
| SL-HZ-200
| SL-HZ-220
|
Pressure
| 28Mpa
| 28Mpa
| 31.5Mpa
| 31.5Mpa
|
Feeding port size
| 1700*1020mm
| 2000*1100mm
| 1100*200mm
| 1100*2000mm
|
Final product size
| 1100*900mm
| 1100*1300mm
| 1100*1300*1500mm
| 1500*1100*1400mm
|
Final product weight
| 1100-1550kg
| 1100-1550kg
| 1100-1550kg
| 1100-1550kg
|
Total motor
| 22kw
| 43.5kw
| 55kw
| 62kw
|
Packing way
| Manual tempered wire 2.8-3.2mm 3 lines
| Automatic tempered wire 2.8-3.2mm 4 lines
| Automatic12# wire 5 lines
| Automatic 12# wire 5 lines
|
Control system
| PLC System
| PLC System
| PLC System
| PLC System
|
Capacity
| 7T/H
| 10T/H
| 12T/H
| 14T/H
|
Oil type
| 46# Hydraulic oil
| 46# Hydraulic oil
| 46# Hydraulic oil
| 46# Hydraulic oil
|
Oil tank
| 2000kg
| 2000kg
| 2000kg
| 2000kg
|

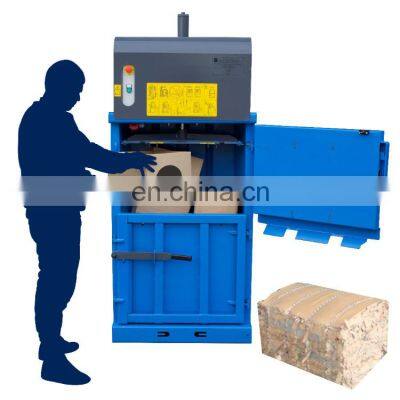

Picture of hydraulic baler
Packaging & Shipping
Our Services
♦ One year guarantee for whole machine.
♦ 24h technical support.
♦ Calling or door to door servise
♦ Use friendly english software,user manual and detailed videos or CD.
Certificate
Working live action
