High Precision Woodworking Wood CNC Beam Circular Saw Sawmill Machinery for Wood Cutting

Product Description

Technical Paremeters

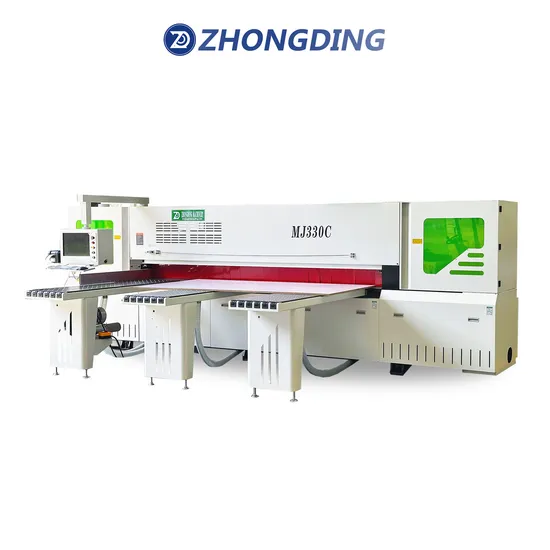

MJ330C CNC BEAM SAW MACHINE

Model	MJ330C	MJ380C
Sawing length	3300mm	3800mm
Sawing thickness	80mm	80mm
Dia. of main saw blade	355mm	355mm
Rotate speed of main saw blade	3950/4500 rpm	3950/4500 rpm
Dia. of grooving saw blade	180mm	180mm
Axis Dia. of grooving saw blade	30mm	30mm
Rotate speed of grooving saw blade	6300 rpm	6300 rpm
Saw carriage forward speed	0-120 m/min	0-120 m/min
Saw carriage back speed	0-120 m/min	0-120 m/min
Head saw motor	15kw	15kw
Grooving saw motor	2.2kw	2.2kw
Saw carriage drive motor	1.5kw	1.5kw
Automatic feeding motor	1kw	1kw
High pressure blower motor	3kw	3kw
Automatic feeding speed	0-40 m/min	0-40 m/min
Operation pressure	5-7kg/cm	5-7kg/cm
Workbench height	850mm	850mm
Net weight	4000kg	5300kg
Dimensions (L*W*H)	6100*6200*1700mm	6450*6800*1900mm

Product Details

Air floating bead table:
The air floating working table saves effort in feeding
and discharging, and reduces contact surface wear.
Control panel:
Optimization software is used to automatically
optimize cutting, and manual design is also possible.
Automatic bar code printing:
Simplify the production process.
Mechanical gripper:
The mechanical gripper running crossbeam device
adopts an adjustable tightening positioning device.
10pcs of cylinder double clamps.
Servo driving:
Multi pneumatic grippers are positioned by servo
driver with high accuracy.
Electrical components:
Internationally renowned brand electrical components.
Application

Company Profile
Qingdao Zhongding Machinery Co., Ltd. founded in 2010, is a very professional and automated woodworking machines Manufacturer. Covering an area of more than 10,000 square meters, there are around 50 employees. We have exported more than 6000 sets of machines to more than 160 countries and areas. The products are exported to many countries and regions such as Europe, Russia, Southeast Asia, the Middle East, North America, and Australia.
Exhibitions

Our customer feedback
Main products

If there have any machines you are interested in ,please click the picture to check the details.
Sliding table saw Edge banding machine Cnc router
Planer thicknesser Brush sanding machine Atc cnc router
We can provide all woodworking machinery, please click on my home page for details, or contact me directly.
FAQ
Q1:Are you factory or trading company?
We are factory.Our factory founded in 2010, is a very professional and automated woodworking machines Manufacturer.
Q2:Where is your factory?
Our factory is located in Qingdao City, and it only takes 30 minutes to drive from our factory to the port, which can save transportation costs.
Q3:Do your machines support customization?
Sure,Our machines can be customized according your requirements,such as the language, logo, appearance, specification, voltage,etc.
Q4:After I receive the machines, if I encounter the problems during installation and use, what should I do?
We will send you the video with the text description in the corresponding language.We also could provide technical support via phone and video talk.Or even send our professional engineers oversea to help you if you need.
If you have any questions or requirements,please contact me directly.

---
