Feature: Full port,1/2"~12" (DN15~DN200) Working pressure:ANSI150LB,ANSI300LB,JIS10K,JIS20K,DIN Blow-out proof stem Fire-safe and anti-static design (option) locking device handle ISO5211 direct mounting pad Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator

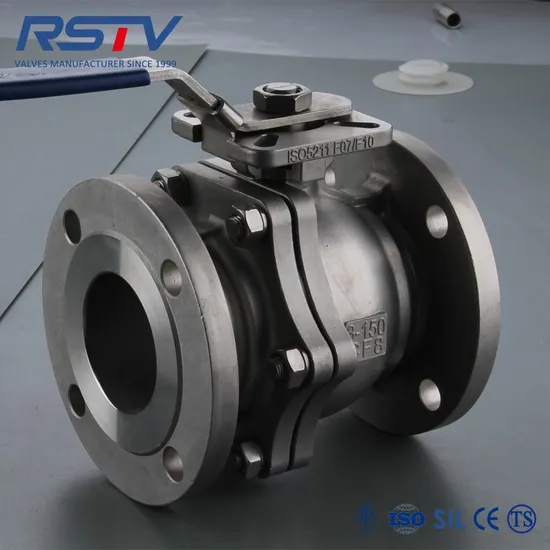

| Product Name | API6D BALL VALVE 2PC Ball Valve Flanged ANSI150lb/300lb Stainless Steel CF8/CF8M /WCB |
| 1. Material | A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC |
| 2. Size | 1/2''~8'' ( DN15~DN200) |
| 3.Certificate | ISO9001 & CE |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB,300LB,JIS10K,JIS20K |
| 6. Connection Ends | Flange(RF/RTJ) |
| 7. Working Temp. | -196ºC~450ºC |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| | 30% prepayment, 70% balance paid before shipping or against copy of BL |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM/ODM is applicable |
| Others | We also manufacture of Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
