Mg-C800s Automatic High Speed Paper Cup Forming Machine for Making Paper Cup

Product Description

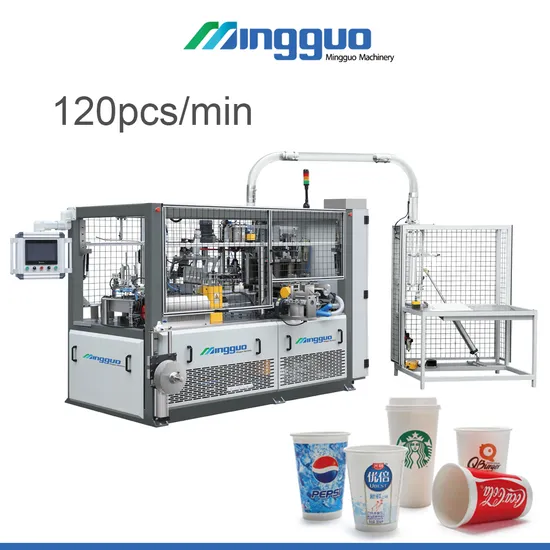

MG-C800s New High-Speed Paper Cup Forming Machine(2.5-12oz)
MG-C800s As an improved and upgraded product of single-plate paper cup maker, this kind of paper machine completes the entire forming process of paper cup by using three turnplates. In order to realize optimal functions and performance, it utilizes open cam design, interrupted division, gear drive and longitudinal axis structure.
The MG-C800s high-speed paper cup machine simplifies the paper cup forming process. This machine can complete paper feeding, gluing, cup bottom paper heating, knurling, cup mouth curl, cup collection, etc, especially suitable for making paper cups with a height of 50-115mm..
Technical Specification

Model	MG-C800s
Paper cups specifications	2.5-12oz 75-350ml(mold exchangeable) T:50-90mm H:60-110mm B:35-70mm
Paper specification	150-350 GSM single/double PE coated paper
Speed	100-120pcs/min
Voltage	220/380V
Full load power	7.5KW
Air supply requirement	Air pressure:0.5-0.8Mpa,Air Out-put:0.5cbm/min
Total Power	2400KG
Dimensions	Machine:2300x1200x1500mm
Optional Equipmen	Paper bowl machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.
(NOTICE) Customization	Customizable Almost all of our paper container forming machines can be modified and customized for Paper cups and Paper bowls. Please let us know your cup/bowl specifications and any of the other requirements, we will offer the professional solution to you.

Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ
1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper
Warmly welcome to contact us
FOR more details and professional 1-to-1 service
