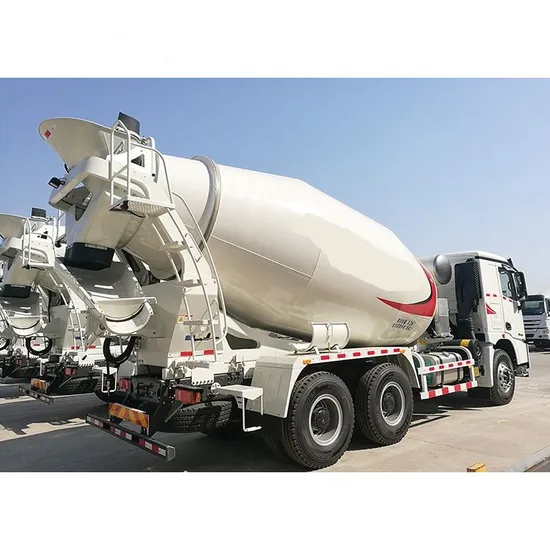

G10K 10m³ Concrete Mixer Truck Mobile Cement Mixer Truck with Spare Parts

Product Description

Product Description *On the basis of in-depth and integrative research on the industry, the new generation truck mixers are system optimized bytaking the integrated modularization design to truly realize the integrated innovation.* Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle andchangeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused by nonuniform concrete.* Optimized chassis matches with upper parts and such parts as front base and accessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.* Hydraulic pump, motor and speed reducer are adopted to make the power more sufficient, system more steady and reliable and service life longer.
Product Parameters

Description	Unit		Parameter value
Performance of mixing drum	Geometric volume	m³	16.8
	Max. diameter of drum	mm	2280
	Drum length	mm	5596
	Mounting tilt angle	°	13.5
	Rotary speed	r/min	0~14
	Charging speed	m³/min	≥3
	Discharging speed	m³/min	≥2
	Residual ratio of discharging	%	<0.7
	Range of slump	cm	5~21
	Hydraulic circuit		Closed type
Water supply	Volume of water tank	L	450
	Way of water supply		Air pressure
Overall machine	Chassis brand		X
	Chassis model		NXG3250D5NCX
	Steering wheel		Left steering wheel
	Curb mass	kg	14600
	Driving type		6×4
	Wheelbase	mm	3800+1350
	PTO way		Flywheel PTO
	Outline dimension	(L×W×H)mm	9510×2500×3970
Engine	Model		WP10.350E53
	Rated power	Kw/r/min	257
	Displacement	L	9.726
	Emission standard		Euro V

Detailed Photos
