Basic Info.
Application Area
Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Max Loading Weight
2000kg/Batch
Mixing Drum Shape
Double Cone
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases.
Product Description

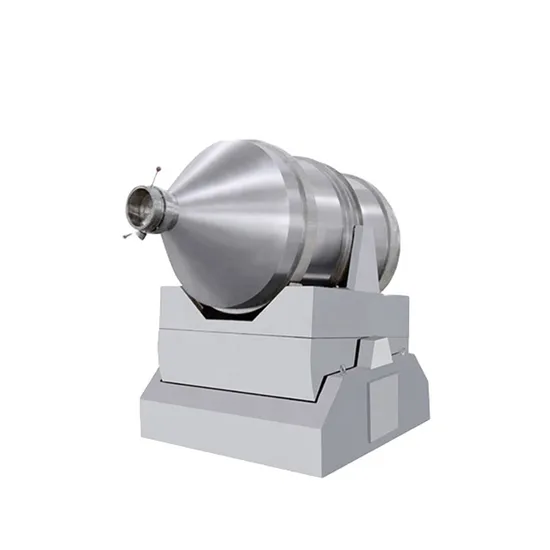

EYH Serires Two Dimensional Mixer
Use:
This mixer is widely used in pharmaceutical, chemical, food, dye, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1000tp-10000litres).
Main Technical Parameters:
| Type | Barrel volume(L) | Loading capacity
(L) | Max loading weight
(kg/batch) | Total motor power(kw) | Overall size(mm) | Weight (kg) | Barrel weight(kg) | No.of swing &rotation(r/min) |
| EYH-10 | 10 | 5 | 2.5 | 0.021 | 310*400*450*395 | 15 | 4 | 85 |
| EYH-30 | 30 | 15 | 7.5 | 0.19 | 540*580*900*700 | 60 | 8.5 | 61 |
| EYH-60 | 60 | 30 | 15 | 0.4 | 700*730*1100*990 | 115 | 15 | 50 |
| EYH-150 | 150 | 75 | 37.5 | 1.15 | 800*1050*1450*1340 | 190 | 50 | 37 |
| EYH-300 | 300 | 150 | 75 | 1.15 | 900*1350*1550*1400 | 340 | 60 | 30 |
| EYH-600 | 600 | 300 | 150 | 3 | 1170*1640*2050*1910 | 1150 | 140 | 23.6 |
| EYH-800 | 800 | 400 | 200 | 3 | 1320*1950*2150*2000 | 1600 | 200 | 19.8 |
| EYH-1000 | 1000 | 500 | 250 | 3 | 1360*2040*2300*2170 | 1700 | 240 | 19.8 |
| EYH-1500 | 1500 | 750 | 375 | 4.4 | 1580*2400*2550*2330 | 2000 | 320 | 16.2 |
| EYH-2000 | 2000 | 1000 | 500 | 7.4 | 1740*2600*2770*2550 | 2600 | 430 | 16.2 |
| EYH-3000 | 3000 | 1500 | 750 | 11 | 1800*2900*2950*2800 | 3500 | 620 | 13.8 |
| EYH-4000 | 4000 | 2000 | 1000 | 13 | 1970*3300*3300* | 4100 | 700 | 12.8 |
| EYH-6000 | 6000 | 3000 | 1500 | 18.5 | 2300*2900*3800*3100 | 6100 | 1100 | 11.2 |
| EYH-8000 | 8000 | 4000 | 2000 | 22 | 2540*4100*4050*3650 | 7900 | 1450 | 10.4 |
Feature:
The mixing barrel swings while rotating so that the materials in the barrel can be fully mixed. Because the discharge outlet of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
>>
