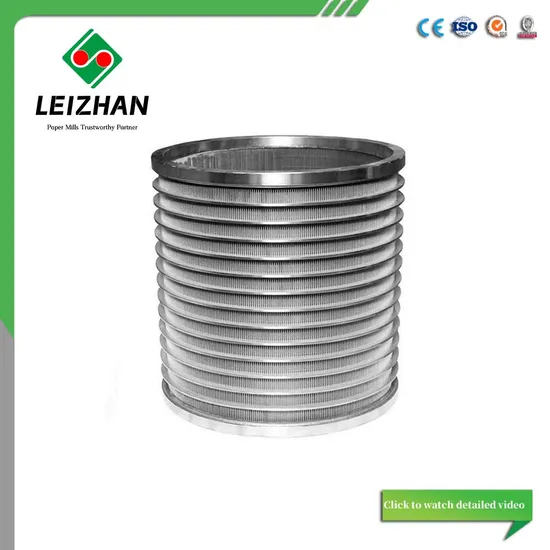

Paper Machine Stainless Steel 304 316 Pulp Sieve Wedge Wire Drilled Slot Hole Screen Basket Drum for Inflow Outflow Finer Coarse Pressure Screen

Product Description

Product Description
High pressure screen basket also called Pressure Sieve Drum,It is mainly used in pressure screen separation equipment to screen and separate the materials before feeding. According to the screening direction of materials in the screen drum, it can be divided into internal flow pressure screen and external flow pressure screen.
Sieve drum is an essential important pulping screening equipment in the pulping process, so the quality of sieve drum directly determines the quality of pulp screening.
Pressure Sieve drum is an essential important pulping screening equipment in the pulping process, so the quality of sieve drum directly determines the quality of pulp screening, in order to produce high-quality paper must have high quality pulping, which plays a key role is the sieve drum.
Product Parameters
ApplicationBe suitable for all kinds pressure screen in pulp making system and paper making system.Features1. High screening efficiency: due to the high pressure of materials along the tangent line into the screen, under the action of centrifugal force, qualified materials quickly pass through the screen drum depending on the pressure difference.
2. Long service life: stainless steel screen drum, corrosion resistance, wear resistance, has a longer service life.
3. Not easy to block: materials are evenly screened from top to bottom, and V-shaped opening gap ensures the opening area and non blocking of screen drum, and avoids high-density accumulation of sediment.
4. Low maintenance cost.

Model NO.	Screen Area(mm)	Screen hole size (mm)	Screen slot size (mm)	Screen Hole (T/D)	Screen Slot (T/D)	Motor Power (Kw)
LZSD0.3	0.3	Φ1.6-Φ3.5	0.1-0.55	50-80	30-50	22-55
LZSD0.6	0.6	Φ1.6-Φ3.5	0.1-0.55	90-160	60-100	30-75
LZSD0.9	0.9	Φ1.6-Φ3.5	0.1-0.55	135-250	90-150	37-90
LZSD1.2	1.2	Φ1.6-Φ3.5	0.1-0.55	180-320	120-190	45-110
LZSD1.5	1.5	Φ1.6-Φ3.5	0.1-0.55	200-380	140-230	55-132
LZSD2	2	Φ1.6-Φ3.5	0.1-0.55	260-500	220-300	75-160
LZSD3	3	Φ1.6-Φ3.5	0.1-0.55	400-700	300-450	90-220
LZSD4	4	Φ1.6-Φ3.5	0.1-0.55	500-1000	350-730	132-280

Detailed Photos
