| US$3,300.00-5,000.00 | 1 Piece (MOQ) |

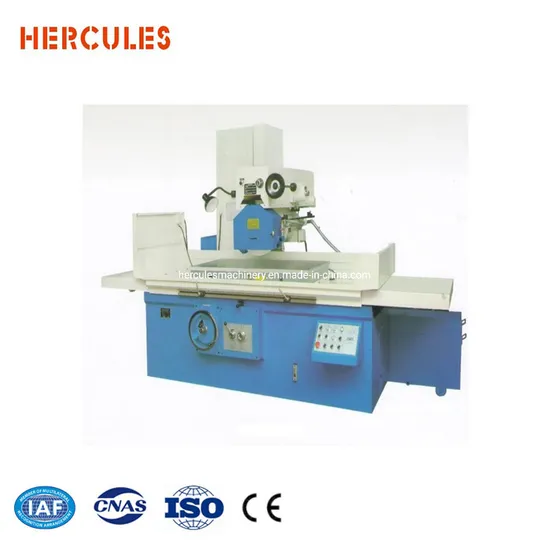

| Specification | unit | M7132 | |
| Table size | mm | 1000×320 | |
| Maximum grinding length | mm | 1000 | |
| Maximum grinding width | mm | 320 | |
| Max distance between spindle centerline and table surface | mm | 575 | |
| Maximum loading capacity of worktable (including with) | kgs | 500 | |
| T-slot table numberxW | mm* | 3*18 | |
| Longitudinal moving speed of worktable | m/min | 3-27 | |
| Wheel head cross moving | continuous feed speed | m/min | 0.5-4.5 |
| intermittent feed speed | mm/t | 3-30 | |
| Vertical moving of wheel head | rapid speed | mm/min | 400 |
| hand wheel feed | mm/gra | 0.005 | |
| Wheel head motor | power | Kw | 5.5 |
| rotation speed | rpm | 1440 | |
| Total power | Kw | 9 | |
| Chuck size (WxL) | mm | 320x1000x1 | |
| Wheel size (ODxWxID) | mm | 350x40x127 | |
| Pack size | |||
| Net weight | kg | 3600 | |
| Machine height | mm | 3650 | |
| Dimensions | mm | 2860×1640x2030 | |
| Hercules Machinery Equipment Ltd. | |||
