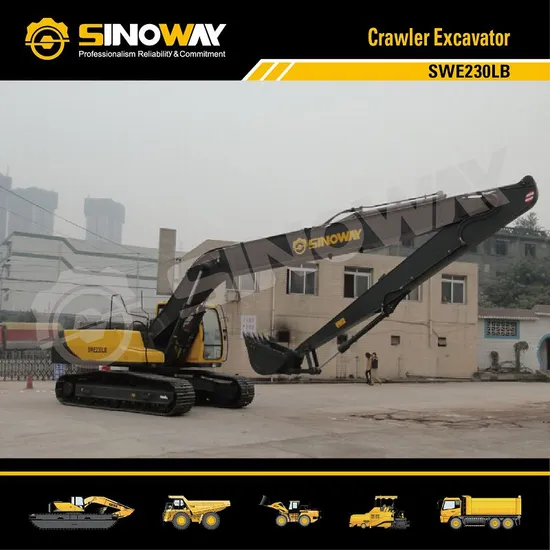

21ton Hydraulic Tracked Crawler Excavators with Long Reach Boom

Product Description

Product Description
The Cummins B5.9 engine produces high power output. Sinoway has harnessed this power for the six working modes of the excavator. Perfectly match these work modes to the job at hand and even the least experienced of the operators will find they can work faster and complete more in less time.
Where intelligence meets brute force.Negative flow hydraulics direct the engine's power to ensure hydraulic pump flow
continually adjustable for smooth, quick and efficient operation.Engine power and hydraulic pump flow are automatically reset to adjust for the load attachment, helping to maximize the efficiency of the machine.
The SWE230LB 's tough and reliable structure provides increased strength, reduced wear, and improved transmission of power to the ground drive.
Ergonomically designed controls, clear and informative displays, increased visibility, and exceptional comfort increases operator efficiency and safety. The easily accessible service points ensures important daily servicing and routine maintenance gets done.
The boom and arm structures are designed with large cross-sectional supports and incorporates one-piece steel castings. This solid engineering guarantees long-term durability and high resistance to bending and torsional stress. Standard rock-guard plates and vertical guards protect the arm in rocky digging conditions and tough
environments.
The upper structure is strongly reinforced by the use of an H-beam in the high cross section of the main structure providing even weight distribution and increasing stability.The platform's collision protection system has been welded into place to improve its strength, rigidity and overall service life.
Engine Model Cummins B5.9-C(UK)
Rated Power 133 kw
Bucket Capacity 0.6 m³
Operating Weight 24100 kg
Product Show
Specifications

Engine
Model	Cummins B5.9
Type	Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power	112KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	23000Kg
Standard bucket capacity	0.4m3
Slewing speed	12.2rpm
Stick digging force	40KN
Bucket digging force	78.7KN
Max. traction force	179KN
Travelling System
Travelling speed	2.8~5.0km/h
Grade ability	30°
Ground pressure	0.0362MPa
Dimensions
Overall length	12050mm
Overall width	3190mm
Overall height of boom	3150mm
Counterweight clearance	1060mm
Ground clearance	470mm
Upperstructure width	2710mm
Clearance under counter weight	1060mm
Rear-end length/Slewing radius	2750mm
Overall track length	4510mm
Track length on ground	3462mm
Track gauge	2390mm
Track width	800mm
Boom slewing angle(L/R)	0o
Operating Scope
Arm length	6335mm
Max. cutting height	13250mm
Max. dumping height	10942mm
Max. digging depth	11690mm
Max. reach	15500mm
