Nc Series Saddle Moving Grinder Surface Grinding Machine

Product Description

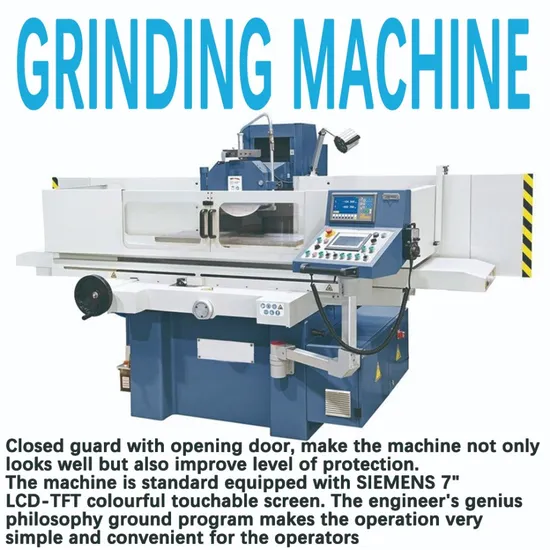

• Closed guard with opening door, make the machine not only looks well but also improve level of protection.
• The machine is standard equipped with SIEMENS 7" LCD-TFT colourful touchable screen. The engineer's genius philosophy ground program makes the operation very simple and convenient for the operators
• NC series saddle moving grinder are standard equipped with YZ axis AC servomotor, and YZ axis MPG. Table X axis movement drove by hydraulic.
• You can choose auto dressing & compensation function as an opitional accessory, which would save much more labor force, so as to assure machining accuracy and product efficiency.

SPECIFICATION		Model
		FSG3063NC	FSG30100NC	FSG4080NC	FSG40100NC
Table Size	mm	305x635	305x1020	406x813	406x1020
Magnetic Chuck Size	mm	300x600	300x1000	400x800	400x1000
Max. Distance From Spindle Center To Table	mm	580
Max. Loading Capacity (Include Chuck)	kg	300	400	500	600
X Axis Feed
Feed Speed	m/min	5~25
Micro Feed Rate	mm
Y Axis Feed
Feed Speed	m/min	0~1
Intermittent Feed Rate	mm/t	0.1~8
Micro Feed Rate	mm	0.005
Z Axis Feed
Feed Speed	m/min	0~1
Micro Feed Rate	mm	0.005
Spindle Rotating Speed	r/min	1450(50hz) / 1750(60hz)
Gind Wheel Size	mm	350x40x127
Spindle Motor Power	kw	4
Floor Space (L*W*H)	mm	2900x2200x1900	4400x2200x1900	3600x2400x1900	4400x2400x1900
Gross Weight	kg	2800	3200	3400	3700
Package Size	mm	2500x2220x2250	3200x2220x2250	3000x2270x2250	3200x2270x2250

---
