Plastic Monofilament Yarn Extruding Machine for Making Rope or Twine

Product Description

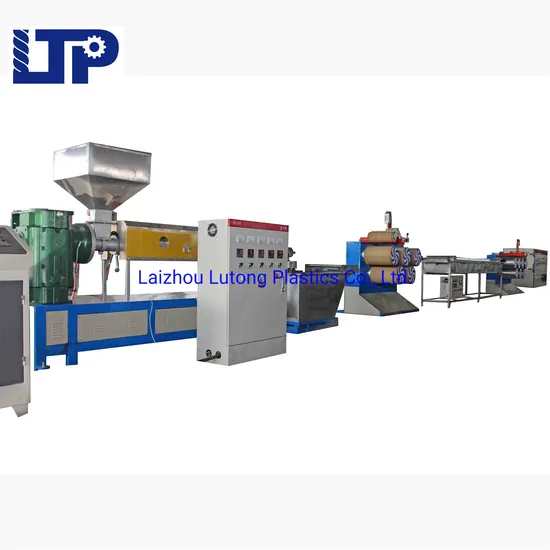

Plastic monofilament machine
Application and Characters:
Usage:
This set of machine is a professional yarn drawing line, which is mainly used for producing PP, PE yarn, and also can be used for processing other plastic yarns via corresponding adjustment.
Characters: 1. This line consists of extruder( including cold water container), first stretching device, heating device, the second stretching device, coiling machine, ect… The matching devices for production process are complete, so it can continuously finish the whole procedures from putting material to separate yarn into axes.
2. This line matched resin molecular bond guidance process, so the finished yarns have the advantages of high strength and stable quality.
3. According to different technological requirements, set and automatically control the heating temperature of screw cylinder and die.
4. These two stretching devices have the automatic full speed system and linear velocity display function, so the machine can choose reasonable speed according to different technological requirements.

Specification:

Model	SJY-45	SJY-65	SJY-75	SJY-80	SJY-90
Screw material	30#CrMonALA	30#CrMonALA	30#CrMonALA	30#CrMonALA	30#CrMonALA
Screw dia.	45mm	65mm	75mm	80mm	90mm
L/D	30:1	30:1	30:1	30:1	30:1
Motor power	11kw	15kw	18kw	22kw	30kw
Spinneret hole quantity	80-90	100-120	110-140	130-150	140-160
Output	20-25kg/h	20-25kg/h	30-50kg/h	70-90kg/h	90-100kg/h

machine details:
Components:
1. extruder with die head, electric box, cold water container
2. the first stretching device
3. hot water container
4. the second stretching device
6. winder ( three types available)

---
